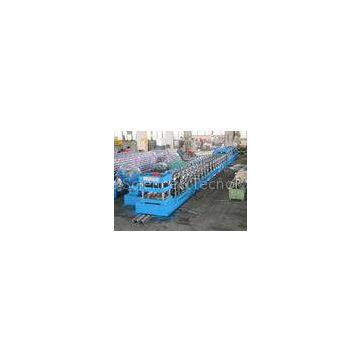

Three Wave Guardrail Forming Machine Line
Description:
1. Rolled thickness:2.0mm-3.5mm cold rolled stee,,hot rolled steel or galvanized steel G350Mpa
2. main motor power: 45kw with speed reducer ,made in China
3. way of drive: joint coupling drive( gearbox for each roller station see picture below)
4. main shaft dia: ￠100mm material: 40Cr fine processment
5. roller material: GCR15 quenched 58°-62°,chromed
6. roll station:13stations plus 7 rolls leveling
7. Working speed:5m--12m/min(not including punching)
8. Transducer: Panasonic /Yaskawa made in Japan. 380V 50HZ
9. Way of control: PLC,Panasonic
10. Computer operating panel:MSG touching screen made in Taiwan
Flowchart:
Decoiling — Feeding — leveling ---- Punching — roll forming ---- hydraulic cut to length — product packing manual
Applications:
Expressway guardrail
Barrier rails
Guardrail beams
Specifications:
The profile
The structure of equipment
1, the place putting material
2, feeding, leveling
feed into unit oriented wheel(can right and left adjust) into feeding roller, dia is ￠180mm,material 45# steel, quenched 48°-52°, chromed leveling is three roller above and four roller below, quenched and chromed3, punching (can right and left adjust)
using hydraulic punching oil cylinder dia: ￠140mm working pressure:20mpa mould material: Cr12 quenched 58°-62° hydraulic power:7.5kw size: 1.5m long*1.1m wide*1.2m high4,roll forming
main motor power: 45kw Decelerating motor: BWD14-43-45kw, made in Shanghai orChangzhou
drive: 120*500 copplins driving, main shaft dia: ￠100mm material: 45﹟forge steel roller material: GCR15 quenched 58°-62°,chromed roll station:15stations Timing by transducer:5m--12m/min(not including punching) Transducer: Panasonic made in Japan. 380V 50HZ Computer: PLC Computer operating panel: touching screen5, cutting
hydraulic cut knife material: Cr12,quenched 58°-62° oil cylinder dia:200mm working pressure:25mpa working journey: 80mm6, the Outside size:
18m long*2.2m wide*1.5m high7, Run out table
Jointed by 60mm*40mm tube (can be adjusted to up and down) Gliding wheel fixed on the shelves size:1.5mlong*0.8mwide*0.6-1mhigh(can be adjusted)The parts of machine
hydraulic passive Uncoiled, Forming Machine ( feeding, leveler, roll mill, cutting, punching, PLC computer, Hydraulic station, cutting), and simple run out shelvesCompetitive Advantage:
