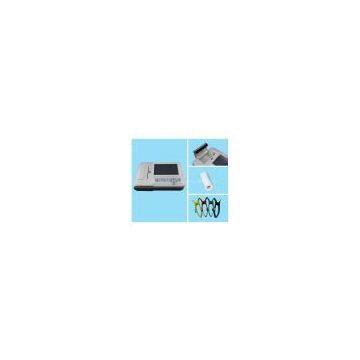

Digital 3/6 Channel ECG--New EKG

Feature

 7" TFT, touch screen, led backlight

 Digital isolation technology and signal pro-cessing solution, digital filter

Patient managment, name and age and id.

Detail analysis report.

Multi-language options: Germany, France,Italian, Turkey, etc

Built-in lithium rechargeable battery, wide thermall printing system

 USB and LAN socket.

 Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces

 of archive

  Auto-measurement, auto-analysis, and auto-interpretation.

 Specifications:

 Lead: Standard 12 leads

 Patient leak current: <10uA

 Input impedance: >=50M

 Frequency response:0.05 ~ 150HZ(-3dB)

 Time constant:>3.2S

 CMRR:>100dB

 Dimention of recording paper: 80mmx20m

 Paper speed: 25mm/s, 50mm/s

 Sensitivity choice:5, 10,20mm/mV.

 Measurement parameters:HR, P-R interval, P-Duration, QRS Duration,Q-T interval,

Q-Tc,P Axis,QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)

Product safety type: Class I, CF. Defibrillation and pacing protection

 Enduring polarization voltage: ± 300mv

 Nosie level:<15uVp-p

 Dimension:130mm(L)× 74mm(W)× 25mm(H)

 Net wight: 2.3KG
