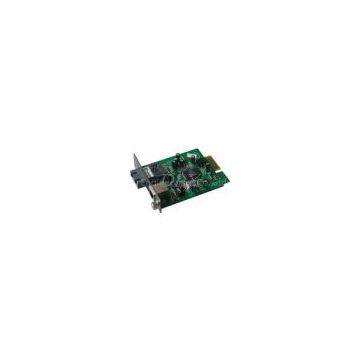

DLX-850K/855GK Slide-in Ethernet Fiber Media Converter

DLX-850K/855GK slide-in Ethernet Fiber Media Converter is designed for centralized management of computer room. Up to 16 pieces of DLX-850K 10/100Mbps or DLX-855GK 10/100M/1000M Gigabit Media Converter cards can be inserted into one rack of DLX-816 Fiber Media Converter Chassis. The DLX-850K/855GK series cards have been improved for anti-jamming of electromagnetism and can be mixed insert, so this flexibility allows the unit to grow with the network.

Product Feature

●     DLX-850K product can fully compatible with IEEE802.3, IEEE802.3U and supports interface conversion between 10M or 100M electrical Ethernet interface and optical Ethernet interface efficiently.

●     DLX-855GK product can fully compatible with IEEE802.3, IEEE802.3U compatible with IEEE802.3, IEEE802.3z, Cisco, 3COM equipment or other similar kind equipment and auto-negotiate to10/100M/1000Mbs.

●     Supports auto-adapt to half / full duplex mode and different transmit speed

●     Inside installation electrocircuits of switch and protect from lighting strike, low power consumption and Low-noise double-cooling fan design, ensuring stable operation of equipment

●     Supports remote port management function via diagnostic and monitoring LEDs for the status of power, FX link/ACT, TX link/ACT

●     Supply one RJ-45 electrical port

●     Auto-negotiate and Auto-cross to NIC/HUB and MDI/MDI-X

●     Advanced optical and electronic integration mechanism can supports good optic characteristic and electrical characteristic, and can ensure the high quality and excellent reliability of date transmit

●     Main board adapts power purification structure, possess excellent reliability and good anti-jamming feature

●     Average time of fault free is more than 50,000hours,meet the standard of telecommunication operation

Technologies reference

●     Operating temperature: 0℃-50℃

●     Storage temperature: -40℃-70℃

●     Environment humidity: 5-90%(non-condensing)

●     Input power: DC 5V.1A

●     Dimension: 115mm x 78mm x 26mm
