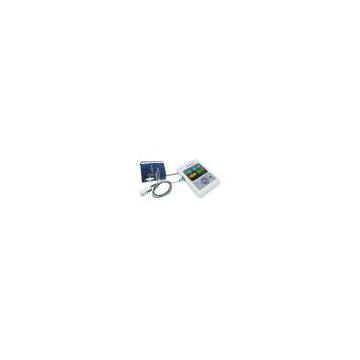

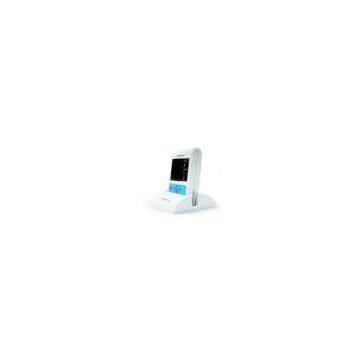

Hand-held Patient Monitor

Patient monitor-handheld patient monitor

Model:PM70

Feature

Routine Check Mode and

      Continuous Monitoring Mode

Data Graph and Trend Table Review

Rich Analysis Report

Sync with PC based Sofrware

     (WinXP and WinVista)

lightweight and easy-to-use portable unit

Built-in NIBP module

Automated & on-demand NIBP measurements

User or system-defined inflation pressure

ECG is optional

NIBP:

Performance Specifications

Display:3.5" Color TFT

Resolution:320x240

Display Mode:Standard face, Waveform face

Indicator:Power indicator light, Alarm sound, Pluse tone

Interface:socket for connecting sensors and sockets

      for communication cables

Power Supply:DC 5V, <300mA

Battery:Builtin Li-Polymer, 2 hours for charging, 3 hours

for continous working.8 hours for standby mode

Trend Graph:Resolution from 1s, 5s, 10s. Maximum time

      96 hours.

Trend Table:Resolution from 1s, 5s, 10s. Review up to 1000

      items.

Alarm:Ajustable High and Low limits. Three level

     audible and vistual alarm

User Configuration:All the color of parameters and waves

      can be set according to user's willing

Technical specifications:

Safety

Meet the requirment of IEC60601 series

Type of Protection:Class II with internal electirc power

    supply

Degree of Protection:BF

Dimention and Weight

Dimention:145(W)x95(H)x37(D)mm

Weight:400g(with battery)

Operation Environment:

Temperature:0~ +40

Humidity:15% ~ 95%

Storage Environment:

Temperature:-20~ +60

Humidity:10% ~ 95%

Patient Range

Neonate ,Pediatric and  Adult

SPO2:

Measurement Range:0 ~ 100%

Resolution:1%

Accuracy:±2%(70%~100%, Adult/Pediatric, non-motion)

                ±3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified

Alarm Range:0% ~ 100%

Refreshing Rate:1s

Pulse Rate:

Measurement Range:25 ~ 250 bpm

Resolution:1bpm

Accuracy:±3 bpm (non-motion)

Alarm Range:25 ~ 250 bmp

Refreshing Rate:1s

NIBP:

Method:Oscillometry

Mode:Manual/Auto/Contiuous

Measurement Range:25 ~ 260mmHg

Atuo Measure Interval:5, 10, 15, 30, 45, 60, 90 ¡öminutes

Resolution:1mmHg

Overpressure Protection: 300mmHg

Alarm range: 25 ~260mmHg
