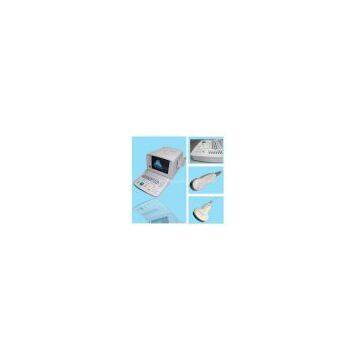

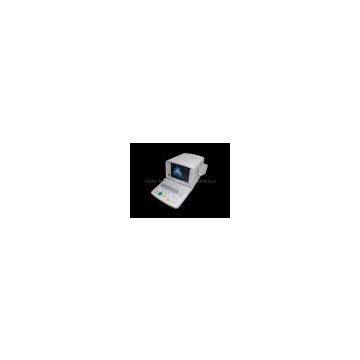

Portable Ultrasound Scanner----CE Approved Ultrasound Machine

Ultrasound Machine,Ultrasound scanner

CMS280A Portable Convex Ultrasound Scanner

Specifications:

1.Scan mode: Electronic Convex/Electronic Linear/Electronic micro-Convex

2.Probe Frequency:2.0MHz~10MHz

3.Display mode:B,2B,B/M,M,4B

4.Gray Scales:256

5.Monitor:10"High-resolution SVGA

6.Resolution:Lateral:<2mm Axial:<1mm

7.Measurement Depth>200mm

8.Zoom:x0.8,x0.9,x1.0,x1.1,x1.2,x1.3,x1.4,x1.5

9.Bodymarks:35

10.Cine loop:192 Frames

11.Image storage:Built-in memony,storage by usb disk

12.Probe connector:2

13.Image Processing:IP setections:4-steps

                Frame averaging:4-steps

                Lineav averaging:2-steps

                TGC adjustment:8-segment

14.Image Reversing:Left/Right,UP/Down,Positive/Negative

15.Measurements:Distance,circumference,aver,Volume,

16.BPD,GS,CRL.FL,HC,AD,AC,FTA,APTD TTD

17.Display:Date,Time,ProbeFrequency,Frane Rate,Patient name

18.Hospitalname,Zoom,Body  marks,Full-screen elit

19.Power Supply:110-220V

20. Weight:11Kg

21.Dimensions:400mmX360mmX260mm

22.Standard Configuration:Main Unit(IPC)

                          2.5-5.0MHZ Convex Probe(IPC)

23.Option Parts:6.0MHz TRANSVAGINAL Probe

                7.5MHz Linear Probe
