Certification:CE, FCC, RoHS, ISO

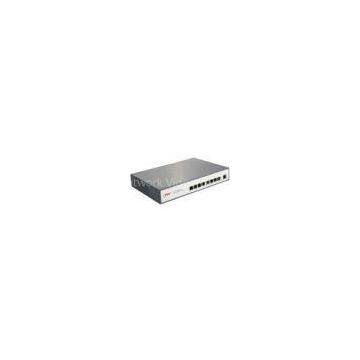

8 Port IEEE802.3at PoE switch for CCTV security
Quick Detail:
Name: 8 Port IEEE802.3at PoE switch for CCTV security
Ports: 9 10/100M RJ45 ports
PoE Ports: 8 ports, 25.5W
Transmission Rate: 10 /100 Mbps.
Ethernet Standards: IEEE 802.3at
Communication Mode: Full-Duplex & Half-Duplex.
Product features
- IEEE 802.3at power on up to 8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 8 10/100 Mbps Ports with Fiber AutoUplink™ port and 1 Optical Fiber port
- Supports PoE power up to 25.5W for each PoE port
- Supports PoE power up to 220W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the PoE Switch POE31804P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Specifications
|
Product |
8 Port IEEE802.3at PoE switch with 1 Port Fiber |
|
Type |
POE31008P-at |
|
Network Ports |
9 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
|
Power Pin Assignment |
Data provided over pairs over 1/2and 3/6 ,Power over |
|
PoE Distance |
100m |
|
Transmission Method |
Store-And-Forward |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
|
Performance Specifications |
Bandwidth:1.6 Gbps |
|
Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission |
|
|
Buffer memory:96 KB embedded memory per unit |
|
|
Address database size:1,000 media access control (MAC) addresses per system |
|
|
Addressing:48-bit MAC address |
|
|
Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) |
|
|
Acoustic Noise: 0 dB |
|
|
Network Protocol and Standards |
IEEE 802.3i 10BASET |
|
IEEE 802.3u 100BASETX |
|
|
IEEE 802.3x Flow Control |
|
|
IEEE 802.1at DTE Power via MDI |
|
|
IEEE 802.3at |
|
|
Status LEDs |
System: Power, PoE Maximum Power |
|
Per Port: Link, Activity, Speed, PoE Active, PoE Fault |
|
|
Power Supply |
Total Power Consumption: 220W maximum |
|
PoE Watt budget: 220W |
|
|
IEEE802.3af Power Consumption: 56 W maximum (Ports 1 – 4) |
|
|
48VDC, 1.25A power output; plug is localized to country of sale |
|
|
Physical Specifications |
Dimensions (H x W x D):28 x 108 x 189mm |
|
Weight:0.65kg |
|
|
Environmental Specifications |
Operating temperature: 0 to 55°C |
|
Storage temperature: -20 to 75°C |
|
|
Operating humidity: 90% maximum relative humidity, non-condensing |
|
|
Storage humidity: 95% maximum relative humidity, non-condensing |
|
|
Operating altitude: 10,000 ft (3,000 m) maximum |
|
|
Storage altitude: 10,000 ft (3,000 m) maxi |
