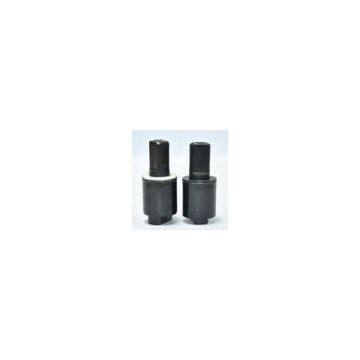

Toilet Seat Joint Damper Absorber

1.Specifications
ft closing, can support 15kgs
2. more than 80000 cycles
3. pass TUV test, ISO9001/14001
4. stainless steel, high class

2.Product parameters
Biggest action angle: 110°
Shell material: PA
Rotating shaft material: PA
Torque range:8-40 kgf.cm

3.Basic Principles
The cover falls from an upright position to a horizonal position, when it is in the highest position, since the inner force of the damper is the smallest, that's to say the torque is the smallest.As the falling of the cover, the outer gravity is getting bigger,and so is the inner forth, but the inner space of the damping grease is getting smaller, that is the reaction forth is getting bigger,and then get buffering, at last the cover closes slowly and lightly.
