10 Mbps / 100 Mbps IEEE802.3af PoE Ethernet Switch 8 Port PoE Switches



10/100 Mbps IEEE802.3af PoE Ethernet Switch 8 Port PoE Switches

Quick Detail:

◆IEEE 802.3af power on up to 8 ports
◆9 10/100 Mbps Ports with AutoUplink™
◆Supports PoE power up to 15.4W for each PoE port
◆Supports PoE power up to 120W for all PoE ports

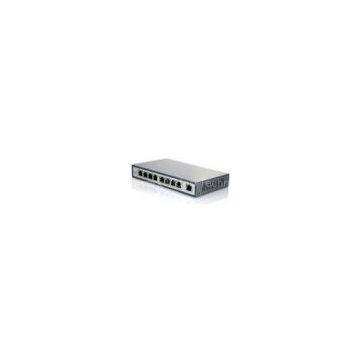

The PoE Switch POE31008P provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The nine Fast Ethernet ports can be used for any 10/100 Mbps link and four of 1-8 port can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch POE31004P automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.

The affordably priced PoE Switch POE31008P delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch POE31008P is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.


The main features:
◆IEEE 802.3af power on up to 8 ports
◆Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆9 10/100 Mbps Ports with AutoUplink™
◆Supports PoE power up to 15.4W for each PoE port
◆Supports PoE power up to 120W for all PoE ports
◆Supports PoE IEEE 802.3af compliant PDs
◆Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
◆1K entry MAC address table of the PoE Switch POE31008P with auto-learning and auto-aging
◆LED indicators for monitoring power, link, activity and speed
◆External power adapter supply


Target  Industries
◆HD monitor transmission and power supply
◆Wireless AP layout transmission and power supply
◆Network telephone transmission , intelligent house and home
system
◆Intelligent transportation supervisory system(ITS)
◆ High-speed Way supervisory/Tele-Communication System
◆ Security protection system, TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ High-building Security Protection, Military Tele-Com projects
