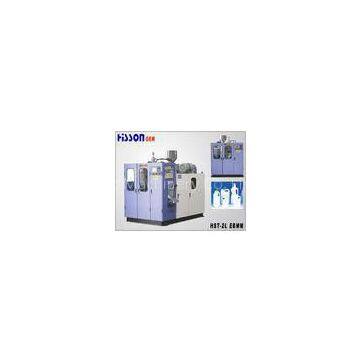

Bottle Extrusion Blow Moulding Machine , 2L Blow Molding Equipment
Machine main components adopt world famous brand, e.g.:
• PLC: MITSUBISHI (JAPAN),
• SCREEN: DELTA (TAIWAN)
• CONDUCTOR: SCHNEIDER(FRANCE)
• AIR SWITCH: MERIINGERIN (FRANCE)
• TRANSDUCER: DELTA (TAIWAN)
• POWER RESOURCE: MEAN WELL(TAIWAN)
• OIL PUMP: YUKEN (JAPAN)
• VALVE: YUKEN (JAPAN)
• SOLENOID VALVE: AIRTAC(TAIWAN)
• PARISON CONTROL SYSTEM: MOOG(JAPAN)
• OIL PIPE, JOINT: LIANHUI(TAIWAN)
Specifications:
|
HST-2L EBMM Technical Parameters |
||
|
Max Product Volume |
(L) |
2 |
|
Working station |
- |
1 |
|
Screw Diameter |
(mm) |
50 |
|
Screw L/D ratio |
(L/D) |
22~30 |
|
Screw drive power |
(KW) |
11~15 |
|
Screw heating capacity |
(KW) |
3.3~4.4 |
|
No.of heating zone |
(ZONE) |
3~4 |
|
Output of HDPE |
(kg/h) |
30~50 |
|
Output of PVC |
(kg/h) |
36~55 |
|
Oil pump drive power |
(KW) |
5.5 |
|
Clamping force |
(KN) |
37 |
|
Platen distance |
(mm) |
138~368 |
|
Max.Size of Mold |
(W×H)(mm) |
300×320 |
|
Capacity |
(L) |
|
|
Max.Die diameter |
(mm) |
90 |
|
Die heat capacity |
(KW) |
1.8 |
|
No.of heating zone |
(ZONE) |
3 |
|
Central distance of bi-die |
(mm) |
130 |
|
Max.Die diameter(Bi-head) |
(mm) |
55 |
|
No.of heating zone |
(ZONE) |
3 |
|
Heating capacity |
(KW) |
2.3 |
|
Blowing pressure |
(Mpa) |
0.6 |
|
Air volume |
(M3/MIN) |
0.4 |
|
Cooling water pressure |
(Mpa) |
0.2~0.3 |
|
Water consumption |
(L/MIN) |
35 |
|
Size of machine |
(L×W×H)(m) |
2.44×1.55×2.35 |
|
Weight of machine |
(TON) |
3.0 |
