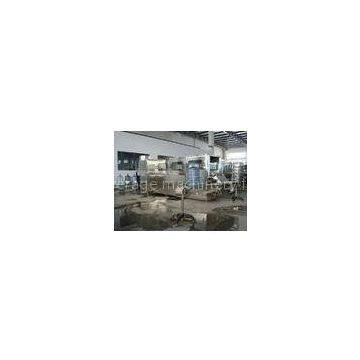

Rotary 5 Gallon Water Filling Machine For Bottled Drinking Water With Eight Heads Pulling Cap

Rotary 5 Gallon Water Filling Machine For Bottled Drinking Water With Eight Heads Pulling Cap

1. Process Description:

   Pulling cap is designed to eight heads, the photoelectric effect to complete block barrel, grasping the cover, pull the cover, blow cover other activities. To ensure the operation time, the cylinder with magnetic cylinder, operating position signal response to PLC, ensuring pull cover rate of 99%.

After pulling the cover under the action of the conveyor bucket into the outer brush barrel machine, in order to ensure the outer brush barrel machine washing liquid less pollution, the conveyor is equipped with external spray system (water), brush barrel machine has nine main brush, bottom seven brush, a water tank, a spray chamber, into the brush drum barrel machine, the cylinder under the action of pushing the bucket to the brush, the rotation three times, into the spray chamber barrel brushing, brushing bucket the transported to the automatic bucket conveyor line has a light inspection, automatic bucket on a 45 degree tilt bucket, one on the barrel 12, the barrel, with the number of seized proximity switch, rotate inserted.

Automatic washing machine total station 13 (according to the user separately processed bit), divided alkali heat flush, back flush with water, disinfectant rinse, sterile water. Lye tank equipped with thermal insulation, recycling water tank, disinfection tank, and each has a water filter back wash, rinse adopts lifting type, rotary cleaning ball inside the nozzle. Spindle stepper using worm, worm motor, lift positioning control by the proximity switch, the PLC program based system for a predetermined time, if the proximity switch failure, the spindle is not action, to avoid injury and injury nozzle barrel, the bottom of each tank showed a bucket-shaped so drained appliances with automatic fault alarm, including water shortages, water pump overload, lift systems and other faults.

After washing the dust barrel into the rotating operation of the conveying line of the filling machine, under the action of the dial into the filling port with the bucket operation, the lift shaft under the action of the filling valve is opened, the rotation circle. Level adjustable filling speed Omron inverter control. After filling into the lid, cleaning, re-entering the chain gland, the rationale for cover inside the lid into the cover after cleaning and disinfection after warehouse, covered much by the photoelectric automatic control.

After sealing cap bottled water by the light inspection, artificial film sets, steam shrink film, pails bagging, marking into the non-powered raceway preparation into the library.



2. Major equipment technical parameters:

An online pulling cap:
a, pull hijab: 8
b, Pressure: 0.6Mpa
c, gas consumption: 0.3 m 3 / min
d, Dimensions: 2550 * 850 * 1800mm

2, on-line rotary brush barrel machine outside
a, Power: 1.1KW
b, Dimensions: 1600 * 1300 * 2000mm

3, automatic bucket device
a, gas pressure: 0.6Mpa
b, Gas Consumption: 0.12 m 3 / min
c, Power: 0.55KW
d, Dimensions: 4000 * 800 * 900mm

4, automatic washing machine
a, power: heating 18Kw, rinse 6Kw
b, Gas Consumption: 01 m 3 / min
c, pressure:> 0.4Mpa
d, station: 12 * 13
e, Dimensions: 6000 * 4000 * 2200mm

5, the rotary filling machine:
a, filling heads: 20
b, Power: Main motor 5Kw
c, management cover: 0.18Kw
d, into the pump: 3Kw
e, Dimensions: 2500 * 2000 * 2300mm

6, automatic cover machine
a, to enhance the scene to determine the inclination orbit
b, Power: Lifting: 0.37Kw
c, cover positions Dimensions: 1000 * 1000 * 800mm

3. Material configuration:
