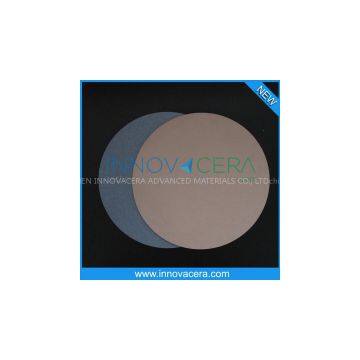

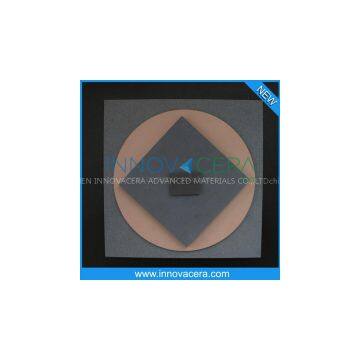

Help CenterFine-pore/Alumina/6" 8" 12" Porous Ceramics Plate for Vacuum Chuck/innovacera
Related Products
-
Nut Welding Zirconia Ceramic Guide Pin/innovaceraNegotiableMOQ: 1 Kilogram -
Zirconia/ceramic Pegs/shaft/rod for Milling Machine/innovaceraNegotiableMOQ: 1 Kilogram
-
High Strength/Zirconia/ceramic Plunger Piston/for Diesel Fuel Injection Pump/water/oil Pump/innovaceraNegotiableMOQ: 1 Kilogram
-
Wear Resistant/Alumina/ceramic Insulator Roller/ring as Technical Ceramics/advanced Ceramics/innovaceraNegotiableMOQ: 1 Kilogram
-
Medical Devices & Equipments , Dental Equipments CNC Milling Services With Aluminum AlloyNegotiableMOQ: 1 Kilogram
Corrosion Resistance/Alumina/ Porous ceramics for Wicking Media/innovacera
1. Porous ceramics Introduction:
Porosity has been a significant problem for many years in ceramics manufacturing and application so scientists, engineers make every effort to investigate the mechanism of the pore generation in ceramic material and to improve the processing routes that can produce ceramics with zero porosity.
The unique characteristics and quality of our porous ceramics allow them to be used in a variety of applications. The natural wetting abilities of a porous ceramic, the uniform pore sizing, and inert raw materials provide an excellent finished product for research or industrial applications. Combine these attractive features with the strength and durability capabilities of a variety of ceramic shapes and you have a limitless number of excellent possibilities.
The range of Innovcera porous ceramics are made from aluminum oxide and silicon carbide. The strong, uniform porous ceramic has 40-50% open porosity with a tortuous pore structure and is available in pore sizes ranging from 6 to 90 microns.
2. Porous ceramics features:
1) Maximum Temperature
Up to 1000C for porous ceramic, limited only by sealants, gaskets or hardware materials.
2) Corrosion Resistance
Porous ceramics are resistant to most acids, except for Hydrofluoric Acid and Phosphoric Acid. In alkaline solutions, porous ceramics are resistant up to pH9. It is also resistant to organic solvents. The sealants, gaskets and/or hardware materials used, may be the limiting factor in certain fluids.
3) Cleanability
Porous ceramic is cleanable by a variety of methods, depending on type of contaminant to be removed. Methods include spraying, brushing, backwashing, oven firing, dilute acid cleaning, solvent cleaning, steam cleaning and ultrasonic cleaning
Porous ceramics are used for:
Vacuum Chucks
Filters
Diffusers
Air Bearings
Permeable Substrates
Dispersion Media
Ash Handling
Wicking Media
Fluidized Bed Plates
Specialty Spargers
Breathers – Vents
Porous ceramics are used where uniform controlled pore size is required in chemical process, semiconductor, pharmaceutical and manufacturing applications.
