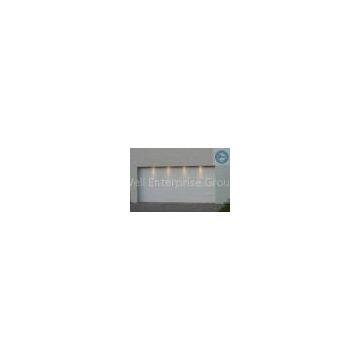

Galvanized Steel Sectional Garage Door 0.35mm Thickness For Villa

Delivery Time:shipped within 15-30 days according to order quantity
Certification:CE
Galvanized Steel Sectional Garage Door 0.35mm Thickness For Villa

Quick Detail:

1. Energy saving heat insulation

2. RAL Color panel

3. High strength PU rigid foam

4. Galvanized steel panel

5. Finished surface

6. High resistance to bending

7.  The reasonable price

8.  Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

Description:

Material: galvanized steel with Polyurethane insulation Steel thickness: 0.35mm, 0.45mm ( white color only) Panel thickness:40 mm Foaming material: polyurethane Density of foam: 43-45kg/m3 Panel type: Finger protection panel & non-finger protection panel Construction: sandwich contraction Panel width: 440-550mm Max panel length: 12m Weight: 8.5kg/m2 Surface finishes: wood grain, orange peel, flush Panel design: rectangle woodgrain design Standard package: carton box with film for 4 or 5 pieces of panel, usually as full set of garage door panel Normal color: Off white RAL9016

Normal Solid colors: Brown RAL8014, Anthracite grey RAL7016, Silver RAL9006, Light beige RAL1019, Ebony RAL9004, Red RAL3000, Blue RAL5015;

Timber color: Mahogany, Gold oak, Dark oak, Black walnut

Single track and double track:

Single track only: 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm

Double track only: 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm

Full set of hardware: Torsion spring, Hinges, Cable drum with cable, Central bracket with bearing, 1\'\' tube shaft, Mounting brackets and other accessories for a complete set Emergency lock for manual operation when power off Residential garage door opener: 800N, 1000N, 1200N, 1500N

Applications:

The panel can be inserted the windows to allow daylight to enter your garage, provide it with further uses, e.g. as a workshop or hobby room.

A sectional door leaf glides vertically upwards under the garage ceiling. This provides you with more space than with a up-and-over door. Please kindly see attached drawing of garage door.

Specifications:

1	Material	Galvanized steel with PU foaming inside
2	Material Construction	Steel-foam-steel, sandwich panel
3	Thickness	Section thickness 40mm; Steel thickness 0.35mm
4	Section Style	Non-finger protection (SN40); Finger protection (SF40S,SF40)
5	Section Size Range	430mm-550mm in height Max 12000mm in width
6	Section Surface Finish	Wood grain, orange peel, flush
7	Front-side design	Wood grain, with Rectangle/stripes design
8	Backside design	Wood grain, with Stripe design
9	Accessories	Single Track with min headroom for 350mm; Double Track with min headroom for 150mm
10	Door Openers	AC220V or 110V; DC Motor; 800-1500N
11	Opening Way	Electrical control and Manual operation
12	Color	White (RAL9016), other colors can be customized

Competitive Advantage:

1.  Low MOQ: One set is available for checking our quality first conveniently.

2.  Good Quality: Your client satisfied on our quality. You can get good reputation
