Certification:ROHS

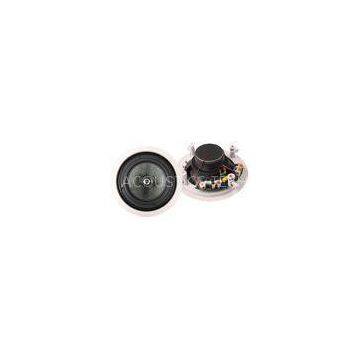

8\" high power ceiling mounted speakers with 25mm aluminum tweeter
Quick Detail:
1. Function : ceiling mounted speakers
2. Type : Passive,full range in ceiling speaker
3. Color : white and black
4. Impedance 8ohm
5. Spl 89dB
6. Frequency range 45HZ-20KHZ
7. Rated power 60w
8. Peak power 250w
9. Certification CE, ISO,RoHS
10. Place of original :Dongguan ,China (mainland)
Description:
8\" full range home speaker ,home audio system ,8\" in ceiling speaker ,8ohm rms 60w ,max power 120w ,peak power 240w ,45HZ-20KHZ
8\" (271 mm) ABS plastic panel ,8\" woofer ,steel basket ,rubber surround with fiberglass cone ,2\"high
performance U-yoke neodymium magnet ,aluminum dome tweeter speaekr , most advanced technology of magnetic fluid.
12dB ±3/oct crossover ,Precision electronic element PCB board and circuit design push terminal .home background music player .
This model is low bass ,enough personal sound ,clearly warmth tweeter sound .
Mounting step
Mounting templete card Cut mounting hole Connect out put line Mounting into hole
Lock and adjust screw lock screw ok Assembly steel grille Finished mounting
Applications
8\" 2way in ceiling speaker is multi function f install speakers .it can according customers different mounting place to design for in-door ,out-door use ,home audio ,when with 70v/100v transformer assembly ,the speaker can use for longer distance output ,some times use for station ,school ,hotel ,shopping plaza ,park,square ..etc public address .
when with crossover 12dB/oct assembly use ,the speaker can use for shorter distance output ,like as meeting room ,restaurant ,home ,bathroom ,gym plaza ..etc
Specifications:
|
NO. |
Item |
Specification |
|
1 |
outside diameter |
Φ271 mm |
|
2 |
voice coil impedance |
8 Ω |
|
3 |
voice coil size / material |
35mm / KSV |
|
4 |
cone / edge |
fiberglass cone / rubber surround |
|
5 |
resonant freq (FO) |
45 Hz ± 20%Hz |
|
6 |
output S.P.L. |
89±3dB |
|
7 |
freq response |
45 Hz ~20K Hz |
|
8 |
rated power input |
60 watts |
|
9 |
max power input |
120 watts |
|
10 |
magnet |
Φ120mm 763 g / 27 oz |
|
11 |
weight |
2400 g / 84.8 oz |
|
12 |
tweeter description |
size:2\" voice coil size / material:25mm/ASV diaphragm: silk and aluminum neodymium: Φ25mm |
|
13 |
passive crossover network |
12dB/oct ± 3dB |
Mechanical drawing:
Our foucs and strategy :
1. we would like do business with everyone for long trem , so the quality we will sure it better than your request .
2. quality control system are belows :
01. IQC: inspection of the raw material;
02. QC: fully inspection of the board, and IPQC check the correctness of the processing of every worker;
03. QC: fully inspection of the products, IPQC check the correctness of the processing;
04.
