Certification:ROHS

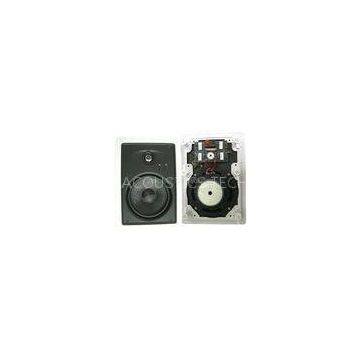

6.5\" aluminum tweeter home theatre in wall speakers for indoor
Quick Detail:
1. Function : in wall speaker
2. Type : Full range
3. Outer diameter : 307*220 mm
4. Impedance 4ohm
5. Rated power 30w
6. Max power 60w
7. SPL 88dB @ 1w/1m 2.83v
8. Frequency range 58HZ-20KHZ
9. Certification CE, ISO,RoHs
10. Place of original :Dongguan ,China (mainland)
Description:
This 6.5\'\' aluminum home theatre in wall speakers was designed with woofer , midbass and tweeter three type acoustics , could play the frequency between 58 Hz to 20000 Hz , there is divider , that will divide the tweeter , midbass and woofer to play out its performance, a polypropylene capacitors,helps tweeter to reproduce original acoustics, less distortion, auxiliary sound field positioning,the midbass sounds clear and crisp , the woofer sound powerful and full , no mixed music . The components like magnet , voice coil , diaphragm cone etc are choose the best suitable materials for the speakers .
This model speaker have been through 12H continue pink noise power test ,this test condition is very strict ,we give them a pink noise sigal then put into High temperature &Humidity chamber to test .both condition circulation to test .all mounting metal bracket and rotary knob through 12H salt spray.
Applications:
This home theatre in wall speaker is multi function install speakers .it can according customers different
mounting place to design for in-door ,out-door use ,when with 70v/100v transformer assembly ,the speaker
can use for longer distance output ,some times use for station ,school ,hotel ,shopping plaza ,park,square ..etc public address .
when with crossover 12dB/oct assembly use ,the speaker can use for shorter distance output ,like as meeting room ,restaurant ,home ,bathroom ..etc
Specifications:
| NO. | Item | Specification |
|
1 |
outside diameter |
307×220×83mm |
|
2 |
voice coil impedance |
5.6 Ω |
|
3 |
voice coil size / material |
25mm / ASV |
|
4 |
cone / edge |
fiberglass cone / rubber surround |
|
5 |
resonant freq (FO) |
58 Hz ± 20%Hz |
|
6 |
output S.P.L. |
88±3dB |
|
7 |
freq response |
58 Hz ~20K Hz |
|
8 |
rated power input |
30 watts |
|
9 |
max power input |
60 watts |
|
10 |
magnet |
Φ80mm 282.6 g / 10 oz |
|
11 |
weight |
1465 g / 51.8 oz |
|
12 |
tweeter description |
size:1.5\" voice coil size / material:25mm/ASV diaphragm: silk and aluminum neodymium: Φ25mm |
|
13 |
passive crossover network |
12dB/oct ± 3dB |
Mechanical drawing:
Quality control for 6.5\" aluminum tweeter home theatre in wall speakers
We have advanced instruments, subtle mold making technique..
Excellence in every detail, Strictly quality control. To ensure high quality, we have a professional QC team,
products have to be repeat checking.
Process of inspecting the speaker
01. IQC: inspection of the raw material;
02. QC: fully inspection of the board, and IPQC check the corre
