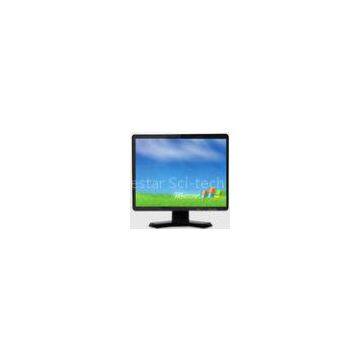

High Resolution VGA 15 Inch Color TFT LCD Monitor With TV Input

Model NO .

1506

Panel size

15 inch TFT-LCD

Visual panel size

304 * 228mm

Standard Resolution

1024 * 768

Number of Colors

16.2M

Brightness

300cd/m2

Response time

5ms

View angle

Horizontal : 160 °

Vertical : 140 °

Contrase ratio

500 : 1

Video input format

 ( analog ) RGB

Connector

VGA ( D-sub )

Frequency

30 ~ 80KHz/60 ~ 75Hz

Power supply

External Power Supply : 100 to 240V AC  ( DC 12V )

Operation Environment

Workable Temperature : -10 to 60 °C

Storage temperature : -20 to 70 °C

Operate relative humidity : 20 % to 80 %

storage relative humidity : 10 %  to 90 %

Net weight

4 Kgs / pcs

Gross weight

4.5 Kgs / pcs

Power consumption

Max 30W

Setup ( optional )

1 ) provide wall brackets for wall-mounting, VESA 75mm&100mm

2 ) provide stable mental base to support the monitor

OSD  control

AUTO , + , POWER , - , MENU

brightness , contrast ratio , auto adjustment , phase position , clock , Languages , function , nstall , reset

Certificate

CE , ROHS , FCC

Warranty

1 year , provide spare parts

Monitor size

( not include base )

370 *  295 * 55mm

Each unit box size

420 * 370 * 155mm

Package size

6pcs in a carton , carton size : 650 *  450 * 420mm
