Certification:FCC ,ROHS,CE,ISO9001

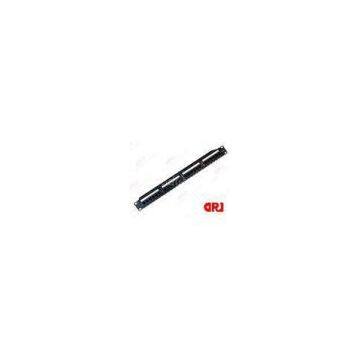

24 ports UTP Black Rj45 Cat5e Patch Panel For 19\'\' Network Cabinet
Quick Detail:
1.Type:Category 5e UTP
2.Color:black 3.Port: 24
4.IDC build -in times ≥250,RJ45 socket plug-pull times ≥750
5.Fit for 22-26AWG (0.4-0.65mm) and 5.2inch(1.27mm) cables
6.Contact: PC UL94V-0, 0.45mm(0.018\")
7.3 u\" Gold plating on contact area
Description:
1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.
2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.
3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.
Electrical:
Angle:90,180 Degree
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6A requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Materials:
Housing: PC UL94V-0
Termination: 110 Type
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04\") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018\") Diameter Phosphor bronze with 3 u\" Gold plating on contact area.
Applications:
Patch management subsystem is the most important component is to achieve vertical lines and two horizontal cabling subsystem cross-connect hub.
for Structure Cabling System
Competitive Advantage:
As a factory,We supply goods: with stable quality good prices shorter delivery time less minimum order quantity.
We are running in networking business for nearly 10years,so our product of cabling are very rich,most of cabling accessories are available with us.
All our goods are sell abroad, and we support our customers with good service of rich experience,which will save much time&work.
