Detailed Product Description

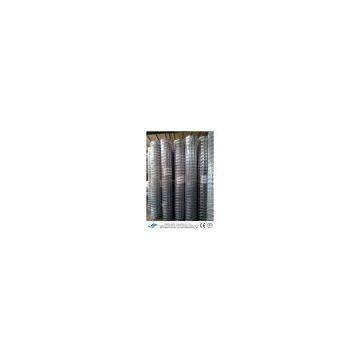

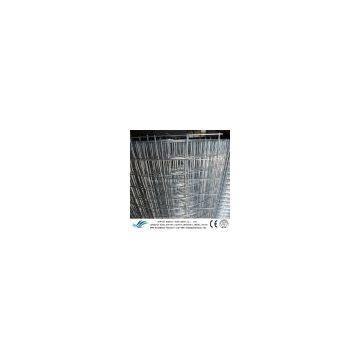

Welded wire mesh
1. Physical plant
2. Rich
experience in exporting
3. Quality assurance and control
4. Best quality
and price
Name: Welded wire mesh
Material: High quality low carbon steel
wire, galvanized steel wire, PVC coated wire, stainless steel wire
It can be
divided into two kinds: Galvanizing after welding, galvanizing before
welding
According to the surface treatment, it can be divided into
several species:
Hot dip galvanized welded wire mesh
Electro galvanizing
welded wire mesh
PVC sprayed coating welded wire mesh
Stainless steel
welded wire mesh
Non galvanized welded wire
mesh
Specification
Width: 0.5-2m (3', 1m is the most
common)
Length: 10-30m/roll
For the panel: 1-4.5m
Aperture: 1/4", 1/3",
3/8", 1/2", 3/4", 1", 1-1/2", 2", 3", 4"(this is for the roll)
For the panel:
2*3cm, 2*4cm, 5*10cm, 5*8cm, 6*12cm customer's choice is
avaliable
Properties: High anti corrosion, aging resistance, acid proof,
alkaline resisting, elegant appearance,
Application:
Widely used in
industry, agriculture, building, transportation, mine, field, lawn, cultivation,
enclosure fence, decoration, machine protection, etc.
| Specification List of Welded Wire Mesh: | |||||||||||||||
| Opening | Wire Diameter<BWG> | ||||||||||||||
| In inch | In metric unit(mm) | ||||||||||||||
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 | |||||||||||||
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 | |||||||||||||
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 | |||||||||||||
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, | |||||||||||||
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 | |||||||||||||
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 | |||||||||||||
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 | |||||||||||||
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 | |||||||||||||
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 | |||||||||||||
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
|
