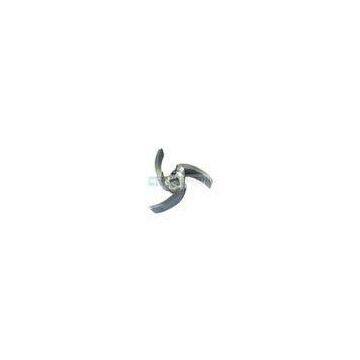

Impeller Investment Casting of Stainless Steel CF8M by Ceramic Shell Process

Impeller Investment Casting of Stainless Steel CF8M by Ceramic Shell Process thumbnail-1
Impeller Investment Casting of Stainless Steel CF8M by Ceramic Shell Process photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Winnington
Place of Origin:
China
Model Number:
Impeller investment casting 005
Contact Supplier Request Quote Chat Now
Winnington Casting CO.,
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Winnington
Place of Origin China
Model Number Impeller investment casting 005
Delivery Time:30-90 days
Certification:PED/AD2000
Quick Detail:
Stainless steel Impeller investment castings for food processing machinery, flow control devices, stainless steel CF8M(SS316).                 Process: Silica Sol Lost wax casting;Wax type: Medium temperature wax;Weight: 1.5kg;NDT service such as X ray test, Dye test are available;Offer hand polishing service;
Winnington Casting has experience pouring a wide variety of stainless steel alloy casts. The most common alloys we have poured are listed below.

Stainless Steel (70%)

Carbon Steel

Alloy Steel

CF3M (AISI 316L), CF8M (AISI 316), CF8 (AISI 304),CD4MCu, CD4MCuN,ANC20,1.4408,1.4517, 1.4306, 303,  430, 420, 17-4PH, SCS1

and more

SCS16, SCS14, SCS13, 1.0619, WCB, S355JR, 1045 , LCC

and more

ANC2,CLA12C,42CrMo,8Q,4140,6150

and more

Description:
All kinds of stainless steel, carbon steel and most of alloy steel casting needs, Winnington Investment Casting can help you out.
Process of investment casting:
Wax die making: Our wax tooling is made of Aluminum which is easy for machining and fast for cooling, at the same time, light for handling. Wax injection: Filling the entire mould with molten wax, and let it cool, until a desired wax pattern is shaped and harden.Assemble the wax patterns: The wax patterns are welded to a runner system by a heated metal tool according to a certain pattern cluster(tree) design. Investment: The ceramic mould, known as the investment, is produced by three repeating steps: coating, stuccoing, and hardening. The first step involves dipping the cluster into a slurry of fine refractory material and then letting any excess drain off, so a uniform surface is produced. This fine material is used first to give a smooth surface finish and reproduce fine details. In the second step, the cluster is stuccoed with a coarse ceramic particle, by dipping it into a fluidised barrel, placing it in a rainfall-sander. Finally, the coating is allowed to harden. Dewax: The investment is then allowed to completely dry, which can take 16 to 48 hours. It is then turned upside-down and placed in a autoclave to melt out and/or vaporize the wax. Burnout & preheating: The mold is then subjected to a burnout, which heats the mold to remove any moisture and residual wax, and to sinter the mold. The mold is preheated to allow the metal to stay liquid longer to fill any details and to increase dimensional accuracy.Pouring: The investment mold is then placed cup-upwards into a tub filled with sand and be poured.After treatment: The shell is then hammered, media blasted, vibrated, waterjeted, or chemically dissolved to release the casting. Further actions like weld repairing,grinding, shot blasting,CNC machining, electro plating will be taken to get a final cleaned precision casting part.
Applications:
Pumps
Valves
Pipe Fittings
Auto Parts
Machine Parts
Marine and Oil
Mechanical Investment Castings
Competitive Advantage:
Winntington has strong technical support and full range of casting facilities and testing instruments to cater the growing investment casting business.
Investment casting is an industrial process based on and also called lost-wax casting, one of the oldest known metal-forming techniques.The castings allow the production of components with accuracy, repeatability, versatility and integrity in a variety of metals and high-performance alloys.
Investment casting is more expensive per unit than die casting or sand casting, but has lower equipment costs. It can produce complicated shapes that would be difficult or impossible with die casting, it requires little surface finishing and only minor machining.


Specifications:


Standards

ASTM,JIS,DIN,BS,MIL

Maximum Casting Size

500*500*350mm

Casting weight

10g~80kg

Wall thickness

1.5-2mm Min

Casting process type

silica sol lost wax casting

Machining

CNC machining, CNC lathe

Surface finish

electro polishing, satin, hand polished, pickled, zinc plating, vibratory polishing;

Tolerances

According to VDG P690

Physical performance

Tensile test, Impact test, Hardness test

Chemical composition test

Spectrometer

NDT test

Dye test, X ray test etc


Applications:
