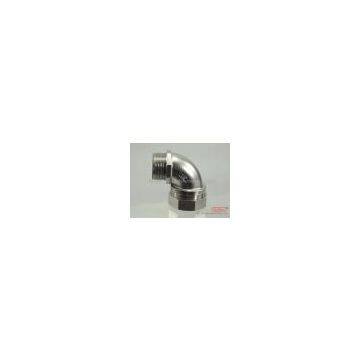

Help CenterStainless Steel 90d Angle Conduit Connector
Related Products
Model: LTC-S24
Description:

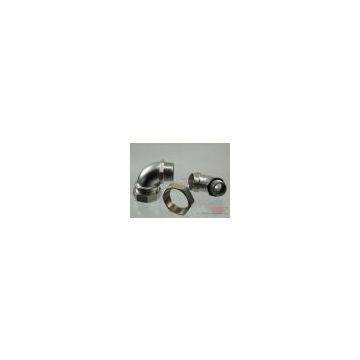

Structure:
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053. 8, hexagonal pressure nut, sealing ring and ferrule.
Material:
Connector body - Galvanized die casting，zinc plated steel& malleable iron， nickel plated brass, stainless steel.
Hexagon pressure nut - Galvanized die casting zinc plated steel& malleable iron，nickel plated brass, stainless steel.
Sealing ring - Nylon 66
Ferrule - Galvanized steel or stainless Steel.
Features:
Simple, one piece installation provides a quick and reliable liquid-tight seal
IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits
High mechanical strength
Highly liquid-tight and dustproof
Vibration and tensionproof
Inherently low fire hazard
Covering of the conduit ends
Available in straight, 45o and 90o bodies
Available in ISO Metric and NPT 、PF、PG，BSP etc. threads
Applications:
General indutrial and commerical electrical wiring protection
Machining centres and robotics
any narrow space in static applications
General wiring for OEM applications
Low fire hazard applications
Underflooring wiring in office buildings
Machine tools
Installations where liquid-tight is a requirement
Outdoor installation
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
| Part No | ISO Thread (mm) | Part No | NPT Thread (inches) | I.D. (mm) | O.D (mm) | Box (pcs) |
|---|---|---|---|---|---|---|
| LTCM-S209 | 16 | LTC-S209 | 5/16" | 11.0 | 15.7 | 25 |
| LTCM-S20 | 16/20 | LTC-S20 | 3/8" | 11.0 | 19.7 | 25 |
| LTCM-S21 | 20 | LTC-S21 | 1/2" | 14.5 | 19.7 | 25 |
| LTCM-S22 | 25 | LTC-S22 | 3/4" | 19.5 | 24.7 | 25 |
| LTCM-S23 | 32 | LTC-S23 | 1" | 25.0 | 31.7 | 15 |
| LTCM-S24 | 40 | LTC-S24 | 1-1/4" | 33.5 | 39.7 | 6 |
| LTCM-S25 | 50 | LTC-S25 | 1-1/2" | 38.0 | 49.7 | 6 |
| LTCM-S26 | 63 | LTC-S26 | 2" | 49.5 | 62.7 | 4 |
Suitable flexible conduits:
VJ type of vacuum jacketed flexible conduit
LT type of liquid-tight flexible conduit
FM type of flexible metallic conduit
