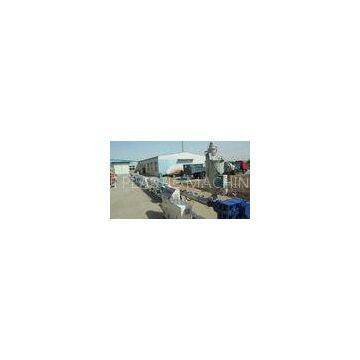

Plastic Pipe Extrusion Line 150 - 1500KG/h For PE Sewage Pipe

Delivery Time:30 days
Certification:CE 、UL、CSA,SONCAP,SASO

Plastic Pipe Extrusion Line 150 - 1500KG/h For PE Sewage Pipe

Quick detail:

1. type:PP/PE water and gas supply pipe extruder,PP/PE drainage pipe machine

2. process type:electrical pipe extrusion machinery

3. Pipe material : PP PE

4. Application: water and gas supply pipe

5.Diameter : 16-1600mm

6.Product capacity : 150-1500KG/h

7.usage:construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire,

cable and optical cable, drainage pipe, etc

Description:

1.PE sewage pipe extrusion machine use to produce many pipe,like PPR cold water and hot water pipe,

single and double pipe, PE/PP/PE-RT/PEX pipe, silicon core pipe etc. Using single extruder to produce

concolorous pipe or many extruder to co-extruding many layer of different color.

2.Main features: Adopt high-efficiency, special screw to ensure the stable quality of high extrusion output.

Lattice backet die achieve low melting pressure and plasticizing temperature to get large processing range.

Tractor caterpillar is durable, strong abrasion resistance, stable high speed of traction power. Dust free

cutting machine with low noise and high precision make the pipe cutting edge smooth and flat.

3.Technical Parameter:

Model	PipeDiameter (mm)	Extruder Model	ScrewSpeed (r/min)	Production Speed (m/min)	Output (kg/h)	Power (kw)
SSG-32PR	Ø16-32	SSJ-45	40-100	4-10	100	50
SSG-63PR	Ø16-63	SSJ-65	40-100	4-10	150	65
SSG-63PR	Ø16-63	SSJ-65	40-100	4-10	150	100
SSG-160PR	Ø75-160	SSJ-90	30-90	2-8	200	150

4.Process flow:Raw material + additive → mixing → vacuum feeder → hopper dryer →

single screw extruder → marking line extruder → mould and calibrator → vacuum calibration tank

→ cooling tank → haul off machine → printer → cutting machine → pipe storage shelve

Applications:

1.field;construction and municipal drain outdoor gas pipe, agricultural irrigation, threading pipe, wire, cable

and optical cable, drainage pipe, etc

2.usage:transportation between cities and in water supply projects of urban areas.

ction:transportation, borehole high-pressure water supply, crude oil and natural gas

transportation,water supply and drainage of daily life, power and chemical plants, and urban construction

Specifications:

Model	SJ65/30-33	SJ75/30-33
Pipe dia.	Φ20-63	Φ90-200
Screws dia.& ribbon width	Φ65,33:1;Φ65,30:1	Φ75,33;1Φ75,30:1
Output	120kg/h	220kg/h
Linear velocity(max)	10m/min	4m/min
Installation capability	58
