Air cooled chiller for Laser Welding System

Air cooled chiller forLaser Welding System

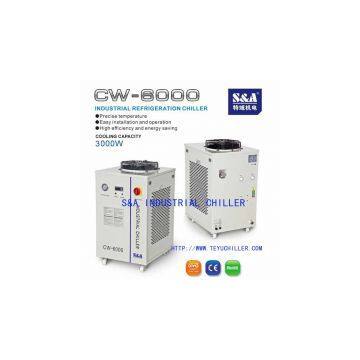

CW-6000 air-cooled chiller isdeveloped and produced by S&A company,  applied to cool laser welding system.

CW-6000 water-cooled chiller has 3000Wcooling capacity with ±0.5℃precisely temperature control, and has 2 temperature control modes asconstant temperature and intelligent temperature control. Under intelligentmode, the water temperature is adjusted according to ambient temperature.

Fiber laser water-cooledchiller parameter:

 Voltage:110V-220V;Frequency: 50/60Hz; Refrigerant: R-22 /R-410a

Pump power: 0.05KW/0.1KW/0.37~0.75KW;Tank capacity:15L

Max. lift:10M/25M/28~53M; Max. flow:13L/min- 70L/min

N.W: 60Kgs; G.W:70Kgs;

Dimension :67 X 47 X 89 cm  (L X W X H); Packingdimension: 74 X 60 X 109 cm(L X W X H)

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on Quality First in designand production.

“S&A” and “TEYU” have been enjoying high reputationamong hundreds of manufacturers which are from both at home and abroad, andexport rate reaches above 60%
