Home > Industrial Equipment & Components > Power & Generating Sets > Generator Parts & Accessories > OEM Custom Intelligent Li-ion Heated Clothing Battery With Digital Display

OEM Custom Intelligent Li-ion Heated Clothing Battery With Digital Display

Name: OEM Custom Intelligent Li-ion Heated Clothing Battery With Digital Display
Brand: BAK, SAMSUNG or SANYO CELL Optional
SKU: 148882700
Availability: InStock

Lixiang Energy Co., Ltd

OEM Custom Intelligent Li-ion Heated Clothing Battery With Digital Display thumbnail-1

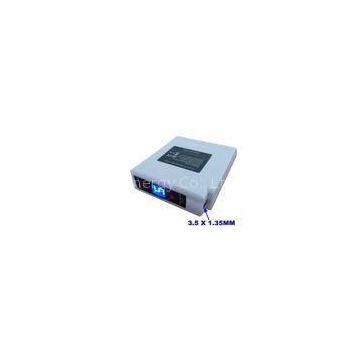

OEM Custom Intelligent Li-ion Heated Clothing Battery With Digital Display photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

BAK, SAMSUNG or SANYO CELL Optional

Place of Origin:

China

Model Number:

LX-DRF02DH

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name BAK, SAMSUNG or SANYO CELL Optional

Place of Origin China

Model Number LX-DRF02DH

Delivery Time:3~15 days
Certification:CE, FCC, RoHs

OEM Custom Intelligent Li-ion Heated Clothing Battery With Digital Display

Parameters

Model No.	LX-DRF02D
Nominal Voltage	7.4v
Working Voltage	6V-8.4V
Nominal Capacity	4400mAh
Charge Cut-off Voltage	8.4v
Charge Current	1.2A
Standby Current	≤100μA
Max. Output Power	20W MAX
Operating Efficiency	≥99%
Loading Resistance	5Ω-200Ω
Charge Method	CC/CV Constant Current/Constant
Charge Temperature	0℃—40℃
Discharge Temperature	-20℃～ +60℃
Charge Duration	4-5hrs(Standard)
Cycle Life Time	Above 500 cycles
Internal Impedance	PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ
Digital Display	4-heat settings, capacity indication
Output Terminal	DC3.51.357mm
Usage	Heated clothing, heated seat cushions, etc.
Battery Size	927223mm
Weight	230g
Color	White, black, red, pink, blue, brown, etc.
Certificates	CE, FCC, ROHS
Lead Time for Sample	3~7 days
Lead Time for Bulk Order	7~15 days

Features:

1. BAK, SAMSUNG or SANYO CELL Optional

2. Smart Power Management

3. Digital Display

4. Four adjustable pulse outputs

5. Protection circuit inside

6. Different colors are optional

7. CE, FCC, RoHs Compliant

8. One Year Warranty

Operation:

(1)Power Indication:

No Load, press ON/OFF button to power on, digital panel will display number 9, 8, 7...1 to indicate capacity level.

(2)Output Indication:

With load, press ON/OFF button, LED in RED color, digital panel will display numner 4, 3, 2, 1 to indicate heat level.

Application:

heated snow sports wears, heated stadium seat cushions, heated base layers, heated underwears, heated jackets, heated vests, heated pants, heated clothing, heated clothes, heated garments, heated apparel, heated motorcycle clothes, heated motorcycle jackets, heated motorcycle vests, heated motorcycle pants, warming apparel, warming clothes, heated military vests, heated policemen vests, etc.

Package:
