Certification:CE, FCC, RoHs

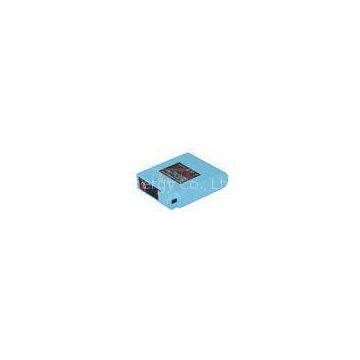

Smart Li-ion 12 Volt Heating / Heated Clothing Battery With Power Management
Parameters
|
Model No. |
LX-DRF05 |
|
Nominal Voltage |
11.1v |
|
Working Voltage |
9V-12.6V |
|
Nominal Capacity |
2200mAh |
|
Charge Cut-off Voltage |
12.6v |
|
Charge Current |
1A |
|
Standby Current |
≤50μA |
|
Max. Output Power |
25W MAX |
|
Operating Efficiency |
≥99% |
|
Loading Resistance |
5Ω-200Ω |
|
Charge Method |
CC/CV Constant Current/Constant |
|
Charge Temperature |
0℃—40℃ |
|
Discharge Temperature |
-20℃～ +60℃ |
|
Charge Duration |
2.5hrs(Standard) |
|
Cycle Life Time |
Above 500 cycles |
|
Internal Impedance |
PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ |
|
LED Display |
4-heat settings, capacity indication |
|
Output Terminal |
DC5.5*2.1*10mm |
|
Usage |
Heated clothing, heated seat cushions, etc. |
|
Battery Size |
92*72*23mm |
|
Weight |
190g |
|
Color |
White, black, red, pink, blue, brown, etc. |
|
Certificates |
CE, FCC, ROHS |
|
Lead Time for Sample |
3~7 days |
|
Lead Time for Bulk Order |
7~15 days |
Features:
1. BAK, SAMSUNG or SANYO CELL Optional
2. Smart Power Management
3. LED Display
4. Four adjustable pulse outputs
5. Protection circuit inside
6. Different colors are optional
7. CE, FCC, RoHs Compliant
8. One Year Warranty
Operation:
Power Indication:
①No Load, press ON/SETUP button to power on, LED in RED color, 90%<= power<=100%
②No Load, press ON/SETUP button to power on, LED in ORANGE color, 30%<= power<=90%
③No Load, press ON/SETUP button to power on, LED in GREEN color, power<=30%
|
Remaining Capacity |
LED#1 |
|
90~100% |
● |
|
30%～90% |
● |
|
0%～30% |
● |
Output Indication:
①Press ON/SETUP button, LED in RED color, the output power=98%
②Press ON/SETUP button, LED in ORANGE color, the output power>=75%
③Press ON/SETUP button, LED in GREEN color, the output power>=50%
④Press ON/SETUP button, LED flash, the output power>=25%
⑤Press ON/SETUP button, LED is off, the battery power off
|
Output Power |
LED#1 |
|
98% |
● |
|
75% |
● |
