Home > Products > New Product > Remote Heated Vests Battery , 7.4V 2200mAh Li-ion rechargable Battery Pack With 4-heat Settings

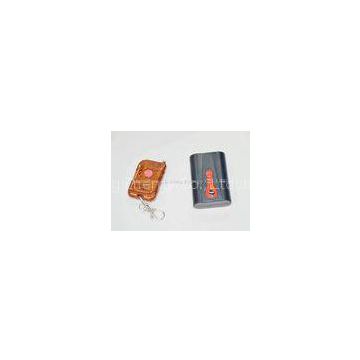

Remote Heated Vests Battery , 7.4V 2200mAh Li-ion rechargable Battery Pack With 4-heat Settings
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | PoMaX | Place of Origin: | China | Model Number: | LX-DRF01 |
Product Description
Certification:CE, FCC, RoHs
Remote Heated Vests Battery , 7.4V 2200mAh Li-ion rechargable Battery Pack With 4-heat Settings
18650 Lithium-ion battery pack for remote heated vests, 4-heat settings & power indication, size: 70*48*22mm, weight: 130g/pc, CE FCC ROHS approved, 1 year warranty
Feature:
(1) User can operate battery by remote controller in distance up to 10 meters.
(2) If remote controller is missing, user still can press battery\'s button to turn power on, change output level & turn power off.
Description:
1. Item: Remote Heated Vests battery
2. Model: LX-DRF01
3. Voltage: 7.4v
4. Capacity: 2200mAh
5. Cell type: Lithium-ion
6. LED display: 4-step temperature control, capacity indication
7. Charge/discharge port: DC3.5*1.35*7mm
8. Size: 70*48*22mm
9. Color: black (white/blue/pink/white/brown, etc. optional)
10. Usage: remote heated vests, etc.
11. Certificates: CE, FCC, ROHS
12. Warranty: 1 year
13. Lead time for sample: 3~7 days
14. Lead time for bulk order: 20~25 days.
Application:
heated snow sports wears, heated stadium seat cushions, heated base layers, heated underwears, wireless heated jackets, heated vests, heated pants, heated clothing, thermal heated clothes, heated garments, heated apparel, heated motorcycle clothes, heated motorcycle jackets, heated motorcycle vests, heated motorcycle pants, warming apparel, warming clothes, heated military vests, heated policemen vests, etc.
Package:
Each battery in anti-static bag & white box, then 20pcs/CTN or 40pcs/CTN.
Charger:
Input: AC100v~240v
Output: 8.4v 1.2A
Charging time: around 2 hours
US/ EU/ UK type optional
Certificates: CE, FCC, RHS.
Specification:
Model No. |
LX-DRF01 |
Nominal Voltage |
7.4v |
Working Voltage |
6V-8.4V |
Nominal Capacity |
2200mAh |
Charge Cut-off Voltage |
8.4v |
Charge Current |
1.2A |
Standby Current |
≤15μA |
Max. Output Power |
15W MAX |
Operating Efficiency |
≥99% |
Loading Resistance |
5Ω-200Ω |
Charge Method |
CC/CV Constant Current/Constant |
Charge Temperature |
0℃—40℃ |
Discharge Temperature |
-20℃~ +60℃ |
Charge Duration |
2-3hrs(Standard) |
Cycle Life Time |
Above 500 cycles |
Internal Impedance |
PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ |
LED Display |
4-heat settings, capacity level indication |
Output Terminal |
DC3.5*1.35*7mm |
Usage |
remote heated vests, heated seat cushions, etc. |
Battery Size |
70*48*22mm |
Weight |
130g |
Color |
black, white, red, pink, blue, brown, etc. |
Certificates |
CE, FCC, ROHS |
Lead Time for Sample |
3~7 days |
Lead Time for Bulk Order |
15 |
