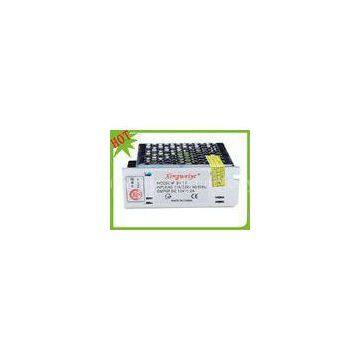

12 V 2 A DC Output Switching Power Supply , Industrial Power Supply

Delivery Time:1-7 working days after getting deposit
Certification:CE RoHs FCC

12 V 2 A  DC Output Switching Power Supply , Industrial Power Supply

Quick Detail:

9 years production experience in power supply. 3 senior engineers with over 15 years experience in this field Low power consumption, high reliability Protections: Short circuit/Over load/Over voltage 100% full loading burn-in test All products have been checked and packaged in good condition before dispatch

Description:

25W 12V 2A POWER SUPPLY

Universal AC Input (full range)

Dimension: 85*60*33.5mm (L\'W\'H\')

Cooling by free air convection

Applications:

1, Digital and electronic products

2, Fiber transceivers, game player, LED, CCTV camera;

3, Electrical Equipment, Instrumentation

4.Industrail Equipment

5, Communications and security products;

6.LED Strip Lighting/ LED lamp / LED Lights

7.LED Display,etc.

Specifications:

Model number	HT-25-12
Input	Input voltage	AC90-264V, 50/60Hz
Output	Max power	25W
Output voltage	DC 12V  + / - 5%
Ripple wave	(mVp-p):  <10%
Temperature coefficient	±0.02%/°C
Setup rise hold up time	200s  100s  30s
Protection	Overload protection	105%-150%vA,automatic recovery
Short-circuit protection	Once short-circuit protection, automatic recovery
Over-voltage protection	115~135%
Insulation	Withstand Voltage	Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure500VDC/100MΩ
Environment	Working temperature	0°C-40°C,10%-90%RH
Store temperature	-10°C~ +60°C,10%-90%RH
Size	Size	85*60*33.5mm
Net weight	145g

Competitive Advantage:

1. Factory direct sales: Wholesale discounts & good quality

2. Timely delivery : 1-7 business days (depends on quantity)

3. OEM and ODM Service.

4. Certification: Our products are mostly certified by CE, LVD, RoHs, EMC, FCC

5. Good service: Your inquiry related to our products or prices will be replied in 24hours. Well-trained and experienced staffs to answer all your enquires in fluent English

Tag: LED power supply, Switching power supply, Constant Voltage Power Supply
