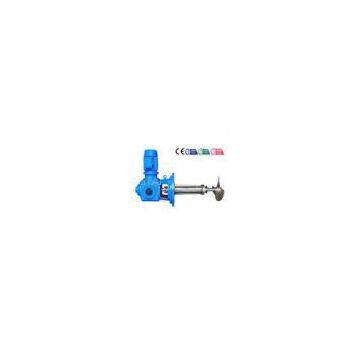

Help CenterHRC 59-62 Hardness Gear FL Series Side Entry Agitator Reducer With Shutoff Equipment
Related Products
-
Widely Used for Pulping and Papermaking Side Entry Agitator FL SeriesNegotiableMOQ: 1 Set -
Helical Gear Side Enter Agitator Reducer TC Series for Fermenting MethaneNegotiableMOQ: 1 Piece
-
Anti Leaking Helical Gear Side Enter Agitator Reducer for FGD IndustryNegotiableMOQ: 1 Set
-
Side Entry Agitator FL Series Awl Reducer With Gelisen Arc-making GearNegotiableMOQ: 1 Set
-
Side Entry Agitator TC Series Leaning Mounted Helical Gear BoxNegotiableMOQ: 1 Set
Certification:CE,ISO9001:2008,ISO14001,GB28001
Quick Details:
|
Gearing Arrangement |
Awl |
|
Output Torque |
65~650N.m |
|
Rated Power |
0.55~22KW |
|
Output Speed |
240~550RPM |
|
Model Number |
FL series |
|
Brand Name |
HENGTAI |
|
Ratio |
2.73~4.09 |
|
Mounting position |
Vertical or leaning mounted |
|
Material for box |
Cast Iron |
|
Packing |
Standard Fumigation Wooden |
Benefits:
1. Strong carring,Long life
2. Small volume and Light Weight
3. Small Power,High Rotating Speed and Efficiency.
4. Save Electric energy of 30-50% if large-scale milled kettle in the condition of the same milled
effect.
Descriptions:
FL series Side Entry Agitator reducer is used gelisen arc-making gear to transmit.The material of gear is
chosen and usd high-intension alloy steel whose quenching rigidlity is HRC 59-62.The machine is with
shutoff equipment when urgently and when the mechanical airproof need repairing or changing,no need to
empty the left liquid,only pull out mixer shaft for some distance to make the block head enter into the
airproof seat,then turn the shaft,the block head and airproof seat will be fastened to keep the liquid out of
the outside.
Other name:
Side enter agitator reducer
Awl gear reducer applied for agitating industry
Coned gear box with more transmission efficiency
Specifications:
|
Type |
Outview axis diameter |
Puddler |
Weight(kg) |
|
FL40 |
φ40 |
TX250-TX400 |
<125 |
|
FL55 |
φ55 |
TX400-TX550 |
<370 |
|
FL65 |
φ65 |
TX500-TX700 |
<710 |
Warranty:
HFT guarantees the products sold for one year from the date of delivery.
Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.
Applications:
Mainly applied for Chemical Industry and Machinery for Food Industry.
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
