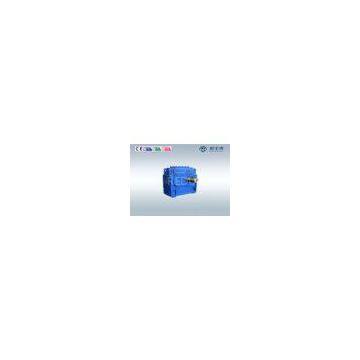

electric motor Helical Gear Reducer , hollow shaft speed reducer gearbox
Quick Details:
· Material for box: cast iron
· Gearing Arrangement: Helical
· Place of Origin: Zhejiang, China (Mainland)
· Model Number: H1SH3-H4SH26
· Brand Name: HENGTAI
· Mounting position: foot mounted
· Packing: Strong wooden cases for exporting
· Output shaft: Solid or hollow output shaft
· Accessories: cooling system, lubrication system
|
Output Torque |
450000 N.m |
|
Rated Power |
1.1-5100KW |
|
Input Speed |
750-1500 rpm |
|
Output Speed |
1.67-1200RPM |
|
Ratio |
1.25-450 |
|
Output shaft diameter |
30-420MM |
Descriptions:
H.H series helical gear reducer are especially compact helical and helical-bevel gear units. H.H series
helical gear unit reducer covers a torque range of 2000-450000 N.m. Parallel shaft design of H.H series
helical gear reducer offers you a great deal of freedom in system design and requires remarkably little
space. Application range for H.H series helical gear reducer: e.g. in materials handling, transporting
heavy loads, mixing, crane drives and shredders. A version, based on this series, with extended bearing
distance and reinforced output shaft, is also available.
Specification:
|
Series |
Transmission Ratio (i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15, H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26 |
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15, H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26 |
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16, H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26 |
Your benefits:
1. Extremely robust gear unit housing
2. Reduced costs and weight due to high power density and finely stepped sizes
3. Effective cooling systems
4. CCW and CW versions may be implemented in a single gear unit version
5. Flexible mounting capability
6. Efficient project planning tools including 2D and 3D dimension drawing generators
7. Short delivery times for standard versions and spare parts
Applications:
Bucket elevator drives
Separator drives
Water screw drives
Conveyor drives
Dryer section drives
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
The cause for breakdown and settlement of reducer:
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too lo |
