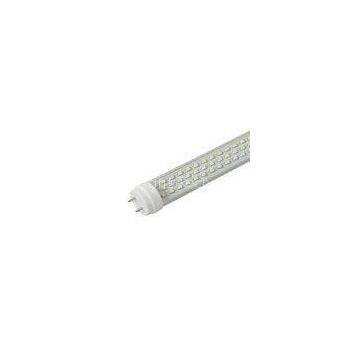

High Power 7000K 3528 SMD 4ft LED Tube Light Ø26mm * 1200mm , 21W T8 LED Tube
Quick Detail:
1)Voltage : AC85-265V
2)Power: 21W
3)Lumen flux: 2000±50lm
4)Size : Ø26*1200mm
5)CCT:2700K-3300K 4000K-4500K 5500K-7000K
6)Beam angle : 120°
7)CRI: ≥72
8)Certificate : CE , RoHS , TUV , UL , CUL
9)Warranty : 3 years
10)Lifespan : 50000hrs
12)Main material : Aluminum+PC
11)Power supply :Isolated and non-isolated are available
Description:
1)CRI(standard procucts)>70 , it can be over 80 if required
2)High-grade PC cover with nice light transmittance(>95%) , transparent PC
3)Use the high quality aluminum PBC for LED’s better hear dissipation
4)Use the most mature international well-know LED SMD3528 and 3014 as the
cover and frosted PC cover are available
5)This product meet the standard of CE , RoHS , TUV , certification
led urce , which can ensure the led tube brightness and long lifetime , also can reduce the light decay .
6)No mercury , lead or other hazardous materials , no radiation , no electromagnetic radiation , no frequency flash , instant startup , no hurting eyes
7)Ambient temperature :-20℃-40℃ , surface temperature :42℃-45℃
8)High quality built-in isolated power supply ,safe use
Technical Specifications:
|
Model: |
OT0822SM288-G |
|
Shade Dimension: |
Ø26*1200mm |
|
Rated Power: |
22W |
|
LED: |
3014 SMD |
|
Frequency range |
60Hz-70Hz |
|
Input Voltage & Frequency: |
AC110-240V |
|
Power factor: |
0.95 |
|
Beam Angle: |
120° |
|
Color Rendering Index: |
≥75 |
|
Color Temperture: |
2700/3000K/4000K/6000K |
|
Working Temperature: |
-20-45℃ |
|
Luminous Efficiency: |
85lm/w |
Features of Product:
1)Green and environment-friendly, with 50000 working hours, no mercury and lead harmful elements, reclamation and recycling of waste lamps.
2)High power, high brightness, high efficiency, more than 80% energy saving
than ordinary lamps, with 3 years\' warranty.
3) AC converts to DC directly, high color rendering index without stroboscopic, eye protection.
4)Healthy light source, excluding ultraviolet and infrared ray, no radiation
5) Tube material is fragile aluminum and PC covers, with high light transmittance, good insulation properties, shock-proof, resistance to fall and convenient transportation.
6)Adopt SMD LED, large emitting angle, single-sided light-emitting.
7) No electromagnetic interference, pure lighting, high color rendering index, is a new type of green lighting product.
Size of Product:
Light Source Test Report:
Packing:
1pcs/inner box , 24pcs/carton , at the size of 66*26*25cm
Production view :
Applications of Product:
Widely used in offices , supermarket , hall , families and other indoor use
Installation:
4ft led T8 tube, 21W led T8 tube light, 120cm tube lights, 22W led tube manufactory, 22W led tube
