Certification:CE&Rohs (UL,TUV,SAA certification led driver optional )

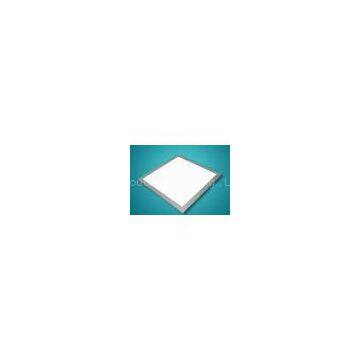

High Brightness 48W recessed Led Panel light 600x600mm AC86~265V
Quick Detail:
1, Size: 595*595mm ;600*600mm;605*605mm optional
2, Power:18W,36W,48W,72W
3, Competitive price
4, Recessed installing, surface installing,hanging installing optional
5, Silver color or white color optional
6, High PF driver , PF>0.9, New high efficiency constant current driver
7. Green environmental protection, lead-free material ,conforming to RoHS
8. Three years or two years warranty.
Description:
Led panel light is one kind of indoor led lights. Comparing with conventional lamps, led panel lights own Energy-saving ,long lifespan ,without Lead ,without Mercury and without Ultraviolet etc. strengths.
Our led panel light adopt side-chip way. And side-chip led panel light emit very even and soft light. Meantime, it protect the people’s eyes. It make led panel light very elegant.
For installing way,there are three kinds of led panel lights.: recessed led panel light,hanging led panel light and surface installing led panel light.
Recessed led panel light is suitable for there is hole on the ceiling . Confirm the hole size ,then make relative cutout size led panel lights.
Hanging led panel light are lifted by several pieces of steel ropes. And lock the steel rope on the ceiling.
Regarding surface mounting led panel light, led panel lights are supported by several clips.And lock the clips on the solid ceiling.
Applications:
1. Commercial Lighting, Restaurants & Hotels, Shopping malls
2. Office Lighting, Retail & Grocery Stores, Showrooms, Airports
3. Warehouse Lighting, Galleries, Hospitals, Warehouses
4. Super market Lighting, institution buildings.
Specifications :
|
Model: |
OT936S600*600 |
CRI(Ra): |
65-75Ra or 75-85Ra |
||
|
Size(MM): |
595*595MM 600*600MM 605*605MM |
Luminous Flux (LM): |
3600LM |
||
|
Installing way: |
Recessed; or Hanging; or Surface installing |
Guide plate& diffuser plate: |
Optical original PMMA & PS material |
||
|
Led driver protection circuit: |
over-load over-current over-voltage short-circuit |
External led driver: |
isolated |
||
|
Heat sink material: |
pure 6063-T5 Aluminum |
Warranty: |
Three years or Two years |
||
|
Input voltage: |
100-240V AC |
CE & Rohs compliant: |
Yes |
||
|
Led type/qty: |
96 pcs of SMD5630 |
Color of the frame: |
silver or white |
||
|
Power: |
48W |
Power factor: |
>0.9 |
Competitive advantages:
1. High stability & reliability;
2. flexible size designing;
3. The core parts such as led components and led drivers come from top brand in China;
4. The main parts such as heat sink frame adopt high thermal dissipation material--6063-T5 Aluminum
5. guide plate & diffuser plate adopt Japan or Taiwan original optical material.
6. Competitive cost-performance;
7. delivery on time.
