Certification:CE&rohs

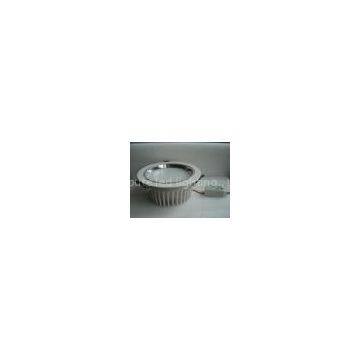

5W 3.5inch dimmable led downlight white cutout:100MM die-casting Aluminum
Quick Detail:
1. Good price .
2. First-class cost performance
3. Input voltage:100-265V AC
4. Triac dimmable optional
5. 3.5\" heat sink body
6. Cutout diameter: 100MM
7. Three years or Two years warranty
8. China Factroy
Description:
Led down light is one kind of very popular indoor led lamps. It own the basic strengths of led lamps: Energy-saving ,long lifespan ,without Lead ,without Mercury and without Ultraviolet etc. strengths.
And the SMD led components emit light through diffuser plate ,it make light soft and even.
And regarding the key components led components and key part led drivers, The high-class quality suppliers help us to guarantee the quality.
About heat sink body, the 3.5” ADC12 Aluminum alloy heat sink body offer enough thermal dissipation support for the led components.
And over three years cooperation with USA,Spain,Italy,Netherlands,France, Czech,Russia,South-eastern Asia, India customers on led down lights products.
The quality is stable and the cost performance is competitive.
Applications: Mall,Shop, Hall ,Supermarket ,Cinema, Office ,Museum ,Gym etc. Indoor environment
Could not see the led source from outside. The led downlight are widely used in many kinds of indoor led lighting projects.
Specifications :
|
Model: |
OT505-3.5\" |
CRI(Ra): |
65-75Ra or 75-85Ra |
|
|
Size(MM): |
Cutout diamter:100MM |
Luminous Flux (LM): |
300LM |
|
|
Installing way: |
Recessed |
Triac dimmable |
Optional |
|
|
Led driver protection circuit: |
over-load over-current over-voltage short-circuit |
External led driver: |
Isolated |
|
|
Heat sink material: |
ADC12 Aluminum alloy |
Warranty: |
Three years or Two years |
|
|
Input voltage: |
100-240V AC |
CE & Rohs compliant: |
Optional |
|
|
Led type/qty: |
10 pcs of SMD5630 |
Color of the heat sink body: |
White |
|
|
Power: |
5W |
Power factor: |
>0.9 |
Competitive advantages:
1. stable quality for three years production experience
2. competitive cost-performance
3. the key led components packaged by high-class supplier in China.
4. The Led driver is over-load over-current and short-circuit protection designing .
5. The heat sink body is ADC12 Aluminum alloy and Aluminum is over 82%--it’s better for thermal dissipation .
6. delivery on time & good after-sales service.
