Safety Automatic Earth Leakage Circuit Breaker / ELCB With Single Phase 240V and 3 Phase 415V

Wenzhou Huajia Electrical Equipment Co.ltd.

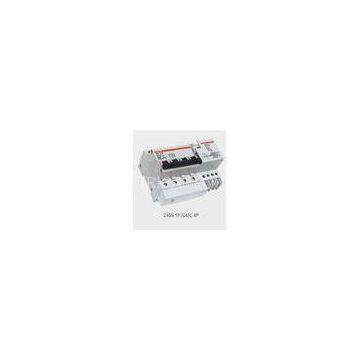

Safety Automatic Earth Leakage Circuit Breaker / ELCB With Single Phase 240V and 3 Phase 415V thumbnail-1
Safety Automatic Earth Leakage Circuit Breaker / ELCB With Single Phase 240V and 3 Phase 415V photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VECAS
Place of Origin:
China
Model Number:
DZ47(C45L)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VECAS
Place of Origin China
Model Number DZ47(C45L)
Delivery Time:WITHIN 30DAYS AFTER L/C OR 30% DEPOSIT RECEIVED
Certification:CE



Safety automatic Earth Leakage Circuit Breaker / ELCB with single phase 240V and 3phase 415V


Application

DZ47NL earth leakage circuit breaker is used for the protection, against electrical leakage in the circuit of 50/60Hz, rated voltage single-phase 240V, 3phase 415V, rated current up to 60A, When somebody gets an electric shock or the residual
current of the circuit exceeds the fixed value, the ELCB can cut off the power within the time of 0.1s automatically protecting the personal safety and preventing the equipement from the fault resulted from the residual current. With this function, the ELCB can protect the circuit against overload and short circuit of can be used for the unfrequent switch over of the circuit under normal conditions. It conforms to IEC60898 & IEC60755.


Specification



Rated
voltage(V)

Pole No

Rated
current(A)

Leakage action
current(mA)

Leakage dead
current(mA)

Leakage
action time(s)

220V

1P

1~10

30

15

<0.1

15~32

380V

2,3,4P

40~60

100

50



a:TH35-7.5 rail is used for the product installation.
b:Outline and installation dimensions (see the figure and the table)



Type

Dimensions

A

B

C

D

E

DZ47L-60/1N

46

70

40

45

94

DZ47L-60/2

64

70

40

45

94

DZ47L-60/3

91

70

40

45

94

DZ47L-60/3N

100

70

40

45

94

DZ47L-60/

118

70

40

45

94
