Certification:CE

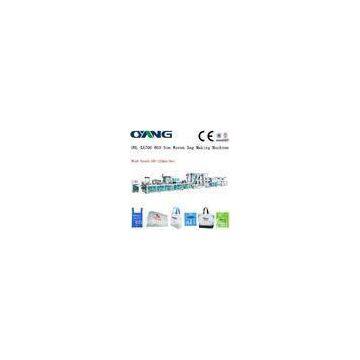

high speed non woven bag making machine for loop handle box type bag
Quick Detail:
This non woven bag making machine is special design for non woven bag making, it can produce different kinds of non woven bag,such as non woven box type bag, vest bag, D-cut type bag, rope wearing type bag,non woven zipper bag,etc indifferent specifications and shapes. It combine the latest mechanical and electrical together as a whole, use ultrasonic sealing type and operation by touch screen,this machine equip auto punching device, automatic counting, setting counting alarm available either, it is an ideal equipment of non woven bag production.
Description:
Machinery Advantage:
1. We can control the ultrasonic device quality.we make it by ourself. We adopt German design and Japan electrical components.Special re-design the ultrasonic device suitable for non woven bag making.
2. Taiwan Touch Screen,Automatic computer control, automatic feeding, automatic counting, automatic stopping.
3. Easy to operate and strong sealing effective
4. Photocell to track the color
5. Equipped with double stepper motor feeding.
6. Equipped auto pneumatic punching device
7.Equipped with tension control device.
8.Equipped auto loading device.easy operation.
8. Machine has got CE Certification, we also get ISO9001:2008 certification.
Machinery Device:
Applications :
1-Box type bag with handle
2-Flat bag with side gusset
3-Flat bag(D-cut bag)
4-T-shirt bag(U-cut or W-cut )
5-Flat bag with handle
6-Shoes bag(rope wearing bag)
7-Laminating bag
8-Zipper bag
Specifications:
|
Machine Model |
ONL-XA700 |
|
Production speed |
40-120pcs/min |
|
Bag width |
100-800mm |
|
Bag length |
200-580mm |
|
Loop handle Length |
370-600mm |
|
Loop handle thickness |
60-120G.S.M |
|
Loop fix speed |
40-60pcs/min |
|
No woven fabric specification(G.S.M) |
30-100 G.S.M |
|
Power supply |
220v,50Hz (60Hz available) |
|
Total power |
32KW |
|
Overall size |
15200×2600×2000mm straight layout |
|
Total weight |
3200KGS |
Competitive Advantage:
1.Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.
2.Machines with quality guarantee for one year, life-long maintenance.
3.A lot of machines can be monitored via Internet, solve customer requirements immediately
4.Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical Stability.
5.Undertake various non-standard machinery, solve the customers\' special requirements.
