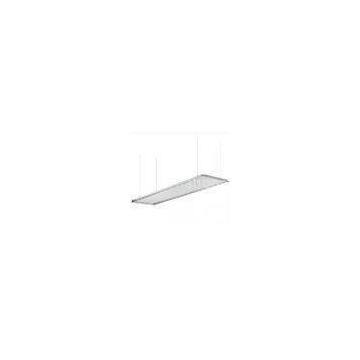

Aluminum 40w Led Flat Panel Light High Power , Warm White 3000K Led Ceiling Panels
Aluminum 40W 300 * 1200 mm SMD LED Flat Panel Light replace grille lamp
Traditional grille is used ordinary fluorescent tube as lighting source, consumption, short service life, maintenance costs are high; the LED flat panel light, energy saving and environmental protection, which is designed to replace the traditional grille lamp.
The lamp body of the LED Flat Panel Light is made of high quality aluminum alloy materials . With the big area of the aluminum frame structure and its ultra fast cooling rate , the heat dissipation performance of the lamp is greatly improved . The adopted high efficient SMD LED light source saves energy significantly by its low light decline rate and long service life . The driver part adopts the constant current drive power supply with high accuracy , high efficiency, stable performance and no stroboscopic.
Quick Detail of Aluminum 40W 300 * 1200 mm SMD LED Flat Panel Light replace grille lamp
Dimensions: 300 x 1200mm Ultra thin 13mm thickness only Long lifespan & 36 months warranty Power: 40W Light source: SMD 3014 LED CCT: 2800 - 6500KProduct Specifications :
|
Model |
R2U - 12005 |
|
Description |
Aluminum SMD LED Panel Light |
|
Dimension |
300 x 1200 x 13mm |
|
Lighti source |
SMD3014 LED |
|
LED QTY |
416 pieces |
|
Power Consumption |
40W |
|
Input voltage (Driver) |
100V-240V AC /50-60HZ |
|
LED Driver Efficiency |
≥85% |
|
PF |
≥0.95 |
|
Operating temperature |
-40~+60℃ |
|
CCT |
2800k-6500K |
|
Luminous Efficiency |
90Lm/W |
|
Luminous Flux |
2800k-6500lm (±3%) |
|
CRI |
Ra ≥ 80 |
|
Bean-angle |
120 ° |
|
Protection grade |
IP44 |
|
Temperature rising |
< 45 ℃ |
◇Utilizing the high brightness Bridgelux LED chips as light source ;
◇Energy saving , saving 60% of energy than incandescent bulbs ;
◇Encapsulated by the special craft make it durable , good heat dissipation by ravines surface structure, service life can reach 50000 hours ;
◇Green environmental protection materials . No ultraviolet , infrared , thermal radiation and mercury pollution ;
◇As a kind of cold light source , LED lights will not make the goods for produce fade phenomenon ;
◇Using high-quality reflectors, downy light , High light efficiency ;
◇High CRI make the light true and clear and have different color temp ;
◇Fast response , no stroboscopic , low glare , total luminous flux output reached when the lights on ;
◇Solid-state light source , strong shock resistance , convenient for transportation and installation , high safety ;
◇Luminous directionality is strong , easy to control the light , effectively improve the efficiency of the lighting system ;
◇Fashion modeling , close to customer needs , blend in more elements of science and technology and humanized design .
★Usage Instruction: Before installation , please read carefully the product specification to make sure the operating environment conforming to the conditions ; Turn off the switch before connecting to the power ; Lamps and lanterns should be installed by a qualified electrician , wiring connection should conforming to
