Product Details
Brand Name: | JJR | Place of Origin: | China | Model Number: | YK9560 |
Product Description
Certification:ISO9000

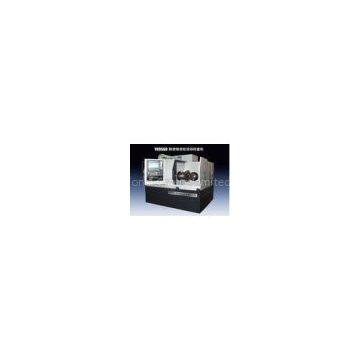

CNC Bevel Rolling Gear Inspection Equipment For Orthogonal Straight Tooth , ARC Gear Wheel
Quick Detail:
This machine is for high-speed, and precise to check orthogonal straight tooth, and ARC gear associate double surfaces cone gear Deputy of dedicated equipment, for detection gear Deputy of contact district, and gear Deputy cut to integrated errors, and gear Deputy a tooth cut to integrated errors, and gear Deputy meshing by produces of machine structure noise, and drive noise, project, its test results can as Amendment gnashing adjustment parameter of important pursuant to. This machine is steady transmission, low noise, high bearing capacity, wide application range, suitable for various types of quality detection and analysis of automobile rear axle gear drive.
Description:
Machine tools using large and small round spindle horizontal layout of structure type. Ferry headstock along its axis direction of movement is used to adjust the ferry installation space (h), and perch along the vertical direction for the bias adjust wheels from (v), the big wheel headstock along its axis direction of movement is used to adjust the wheel installation space (G). V, h, g, each of the three movements in the direction of the servo-motor driven precision ball screw linear guides implementation. Big and small spindle spindle wheel drive at a speed of up to 3,000 rpm. Machine whole structure is compact, novel, although good, easy to operate.
Specifications:
Big Wheel largest diameter | mm | 600 |
Ferry largest diameter | mm | 254 |
maximum offset | mm | ±76 |
distance from small wheel spindle axis to big wheel spindle noses | mm | 89~270 |
distance from big wheel spindle axis to small wheel spindle noses | mm | 165~360 |
Spindle bore diameter big end | mm | 100 |
taper | 1:20 |
|
taper hole depth | mm | 80 |
hole diameter | mm | 96 |
Driven wheel spindle parameters | ||
diameter od spindle taper at large end | mm | 60 |
taper | 1:20 |
|
Taper hole depth | mm | 24 |
through-hole diameter | mm | 50 |
retarding torque | Nm | 2~50 |
CNC system | 840D |
Company Profile:
Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers. With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery. Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing software for developing and designing. The company combines producing with research and development by Cooperating with TIANJIN University and other colleges for many years.
