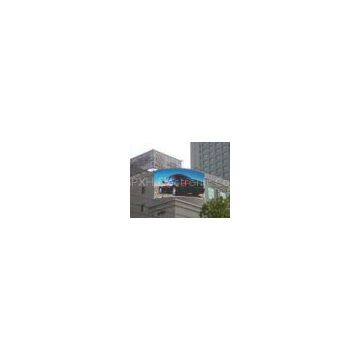

16 8 pixels 2R1G1B Outdoor LED Screen with Horizontal 120 , Vertical 60

Technical Specification

Pixel

Pixel pitch: 16mm

Pixel configuration: 2R1G1B

Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd

Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm

Module resolution: 16×8 pixels

Module

Module size: 256mmx128mm

Cabinet size: 1024mm×768mm×150mm

Cabinet

Cabinet resolution: 3072 pixels

Cabinet material: Steel

Gross weight: 55kg

Module quantity: 32pcs= 4(w) x 8(h)

Power consumption : Max.:1000W/m² Everage: 600W/m²

Screen parameter

Drive method: static

Brightness: 8000cd/m²

IC driver: MBI 5026

Density: 3906 pixel/m²

Whole display flatness: ≤ 1mm juncture

Best view distance: ≥ 16m

Viewing angle: Horizontal: 120° Vertical: 60°

Humidity(RH): ≤ 90~95%

Working temperature: from -30°C to +60°C

Working voltage: AC220V/110V±10%

Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)

Frame rate: ≥ 60Hz

Protection grade: IP64

MTBF: More than 10000hrs

Life time: 100,000 hrs

Control system

Control system: Linsn

Signal interface: DVI

Communication distance: Internet cable: ≤120m / Fiber cable: 1000m

Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000)
