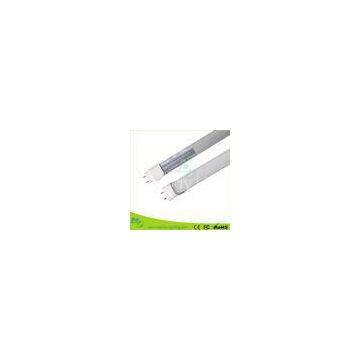

22w / 18w 50hz / 60hz LED T8 Tubes For Offices Cold White 5500k / 7000k Tubes
Certification:UL, FCC, EC, RoHS
22w / 18w 50hz / 60hz LED T8 Tubes For Offices Cold White 5500k / 7000k Tubes
Quick Detail:
Efficacy 98LM/W Replaces up to a 55W Fluorescent bulb 2, 3, 4, 5 feet available Compatible with magnetic ballasts 10 day unconditional return(From the day you receive the goods.)Description:
* Direct replacement: Compatible with magnetic ballast
* Thermal dissipation:1mm thick Aluminum PCB, 18mm wide Aluminum PCB, 1mm thick Aluminum housing
* High Lumen: Our 4’ tubes can reach 1750LM.
* Consistent light: No dark spot, Uniform and soft light distribution
* 4 year warranty: Within 4 years, any issues of product quality are on us.
*SMD3528: High bright SMD3528, Small light decay
* 50 000 hrs lifespan of LED: 50,000 hour life, or more than 17 years operating 8 hours a day, is based on L70 standards (at 25 degrees C based on LM80 data). When the LEDs reach 30 percent lumen depreciation, end-of-life is reached. This life cycle far exceeds halogen and CFL, and is almost double the life of linear fluorescents.
* Universal Voltage: AC 85-285V
* Cert.: CE, EMC & ROHS
* Dimmable optional
* Rotatable.: Rotatable End-cap is optional
Applications:
Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Model |
Length |
Chip |
Color Temp. |
Voltage |
Quantity of LEDs |
Power |
PC housing |
Lumens |
|
T8 |
600mm |
SMD3528 |
2500-9900K |
AC85~V265V |
144pcs |
9 w |
Clear |
900 lm |
|
Frostied |
780 lm |
|||||||
|
900mm |
216pcs |
14 w |
Clear |
1350 lm |
||||
|
Frostied |
1150 lm |
|||||||
|
1200mm |
288pcs |
18 w |
Clear |
1800 lm |
||||
|
Frostied |
1550 lm |
|||||||
|
1500mm |
360pcs |
22 w |
Clear |
2250 lm |
||||
|
Frostied |
1950 lm |
