Fully Automatic Electric Barrel Filling Machine 450BPH for Water

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Renda		Place of Origin	China
Model Number	QGF-450

Product Description

Delivery Time:20 days
Certification:CE|ISO

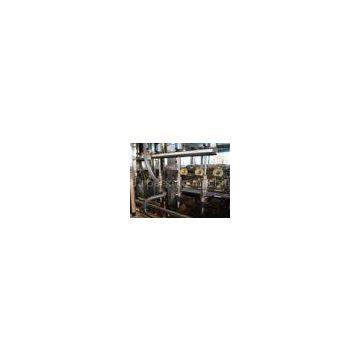

Fully Automatic Electric Barrel Filling Machine 450BPH for Water

Quick Detail:

Driven Type: Electric

Voltage: 110/220/380V

Power: 4.8KW

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda

Dimension(L*W*H): 3550*1200*1800mm

Weight:4000kg

Certification: CE,ISO

Processing: bottle packing machine

Suitable Bottle:5 gallon

Material: stainless steel

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Description:

This 5 gallon filling machinery specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. 5 gallon filling machinery integrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The 5 gallon filling machinery sealer can seal bottle caps automatically.This 5 gallon filling machinery equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this 5 gallon filling machinery can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which 5 gallon filling machinery integrates mechanism,electricity and pneumatics technologies together.

Applications:

The QGF series filling machine is specially designed for the 5 gallon barrel.

Specifications:

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Filling heads	1	2	3	4	8	12	16
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Capacity(B/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure(mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6
Gas consumption (m3/min)	0.37	0.6	0.6	1.2	2.2	3	4.5
Motor power(Kw)	1.75	3.22	4.8	8.5	8.5	8.5
