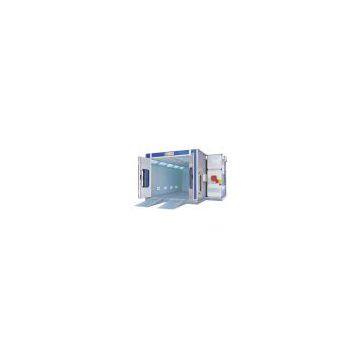

Spray Booth

Features: 1) For car painting and baking 2) maintains a high level of safety and performance together with top quality construction and materials 3) Various systems of environmental protection are optional for customers 4) A wide range of colors available: white, red, marine blue, gray, orange 5) Trustworthy durability of each parts 6) Good after-sales service 7) Non-standard unit available according to customers\'\' requirement Specifications: 1) Inner dimensions: 6.9 x 3.9 x 2.7m 2) 3 big doors and 1 emergency door 3) Full tension grates 4) Automatic pneumatic big recycling damper 5) Filter supporter frame with powder coating treatment 6) Italy or Holland filter 7) Colors: fronts blue, other parts off-white 8) Thickness of wall panels different from GL1000-A 9) Euro-style light chamber: a) Upper lights: 10 sets, 4 x 40W/set b) side lights: 8 sets, 2 x 20W/set 10) Air intaker: one unit, 7.5kW with big vane 11) Air Exhauster: one unit, 4kW 12) Hot air generator frame: a) Formed by aluminum material b) Molded welding wrapper cover is color plate 13) Square type base supporter 14) Imported electronic controller components 15) Total power: 13.5kW Outer packing: common export packing
