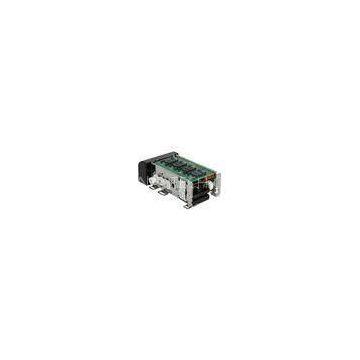

Auto Insertion Motorized RS 232 ATM Card Reader / IC Card Reader Writer
Quick Detail:
CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.
Description:
Motorized card reader CRT-310 with below main features:
★ RFID/IC card read/write, magnetic stripe card read only
★ Insert and eject the card from both front and rear side
★ RS232 interface
★ DC12V ±5%
★ DC24V/DC12V converter plate
★ Power-fail protection
★ Deal with abnormal cards function
★ Electric shutter and mechanical shutter for option
★ PSAM board for option
★ Support IAP Download
Applications:
Kiosk terminals
Payment systems
Access control terminals
Specifications:
|
Card standard |
Magnetic Card: ISO7810 ID-1,ISO7811 |
|
Life time |
Magnetic head:500,000 passes IC card contact:300,000 passes Motor:300,000 passes |
|
Communication |
RS232 interface |
|
Power supply |
DC12V±5% |
|
Current consumption |
Static Current: 110mA Peak Current: <1.5A |
|
Temperature/Humidity |
Operation:0~50℃/0 ~ 90% RH(Non condensing) |
|
Dimension (LxWxH) |
148x86x48mm |
|
Weight |
Approx 410g |
Competitive Advantage:
RFID/IC card read/write, magnetic stripe card read only.
Automatic insertion/ejection of the cards
Insert and eject card from both front and rear
Electric and mechanical shutter for option
Power-fail protection
PSAM board and LED for option
Abnormal card processing
Support IAP download
