Certification:CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
Customized Made 36V 10Ah Lifepo4 Battery Pack For Electric Bike
Quick Detail:
1. Long cycle life: 1200+ times, 70% capacity remained after 1200 cycles
2. Low self-discharge rate: less than 3%
3. Shape free: any shape can be designed, customized made
4.Good quality: CE approved
Description:

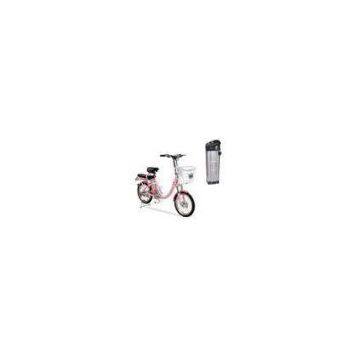

White fish shape 36V 10ah lifepo4 battery pack for electric bike
Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.
Specifications:
|
Items |
Characteristic parameters |
Remark |
|
|
Standard voltage |
36V |
||
|
Standard capacity |
10Ah |
0.2C5A discharge |
|
|
Resistance |
＜110mΩ |
AC Imp |
|
|
Standard charge current |
0.2C (2A) |
||
|
Max charge current |
0.5C (5A) |
||
|
Standard discharge current |
1C |
||
|
Max discharge current |
2.5C |
||
|
Over-current protection |
YES |
||
|
Dimensions |
285mm*95mm*72mm |
||
|
Weight |
＜5Kg |
||
|
Charge/discharge port |
or or |
||
|
Charing mode(CC/CV) |
standard |
0.2C5A×6 hrs.(reference value) |
|
|
fast |
0.5C5A×2.5 hrs.(reference value) |
||
|
Working temperature range |
charge |
0℃~+45℃ |
|
|
discharge |
-20℃~+55℃ |
||
|
Storage Temperature Range |
-40℃~+40℃ |
||
|
Storage environment humidity |
5%～90% RH |
Attention:
We are a manufacturer, not a retailer. And due to the battery is not good for store a long time, all the battery packs are made once the order is confirmed.
Sample battery pack delivery time is about 15 days. If you can\'t accept the delivery time, we can just say sorry!
Sample battery cells can be delivered at once because we have many cells in stock.
When you place an order of battery pack, please kindly tell us the details as follows:
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lit
