High Speed Slew Ring Drive For Container Lift Crane , 50Mn Slewing Ring Drive OEM

Delivery Time:10-30days
Certification:ISO9001:2008

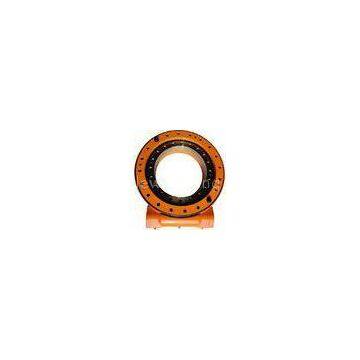

High Speed 7 inch Slew Ring Drive For Container Lift Crane , 50Mn Slewing Ring Drive OEM

Quick Detail:

7 inch solar tracking system use slewing drive for solar tracker and engineering machinery. AX7 Enclosed housing slewing drive, A7 Open housing slewing drive. With many years of manufacturing and export experience in bearings field, 90% of our output to Europe and the USA. ISO9001:2008 certificate approved quality. OEM service.

Aoxuan slewing drives are widely used in the different engineering application such as heavy loader transporters, harbor mobile crane, ship lifting, claw trucks, container lift crane, and movable gantry cranes. Mine machine, excavator, concrete machine, paper machine, as well as wind power generation system also use our slewing drive .

Description:

Slewing drive mainly consists of a slewing bearing, a worm gear or spur gear, housing and a hydraulic or an electric motor.

Aoxuan slewing drive delivers dependable operation with the rugged design ensuring many years of low-maintenance operation and feature of easier installation and compact space etc. With many years of manufacturing and export experience in bearings field, 90% of our output to Europe and the USA, ISO9001:2008 certificate approved quality, OEM accepted.

Slew drive is divided into worm gear driven type and spur gear driven type, the worm gear series slew drive contains 9 sizes from 3 inch to 25 inch, AX3(3inch), AX5(5inch), AX7(7inch), AX9 (9inch), AX12(12inch), AX14(14inch), AX17(17inch), AX21 (21inch), AX25 (25inch), and widely used for solar tracking system, vehicle and crane steering systems, man lift systems for boom and basket rotation, light crane systems, rotation of attachments such as excavators, grabs and fork lifts, handling equipment (automation systems), loading and unloading devices, positioning systems / turntables.

Applications:

Aoxuan Slewing drives are widely used not only in excavators, tower cranes, mobile cranes and crawler cranes, but in other construction machines, engineering machines, harbor machines, metallurgical machines, light industrial machines, military equipments and wind generators, solar PV utilities etc.

Specifications:

Data    Model	Output Torque	Tilting Moment Torque	Holding Torque	Static Axial Rating	Static Radial Rating	Dynamic Axial Rating	Dynamic Axial Rating	Gear Ratio	Accurace	Self locking Gears	Weight
AX7	1 kN.m	13.5kN.m	10.4kN.m	133kN	53 kN	32 kN	28 kN	73:1	≦0.2°	YES	21KG
738.lbf ft	9957lbf.ft	7671lbf.ft	29900lbf	11915lbf	7194lbf	6295lbf
A7	1 kN.m	13.5kN.m	10.4kN.m	133kN	53 kN	32 kN	28 kN	73:1	≦0.2°	YES	16KG
738.lbf ft	9957lbf.ft	7671lbf.ft	29900lbf	11915lbf	7194lbf	6295lbf
