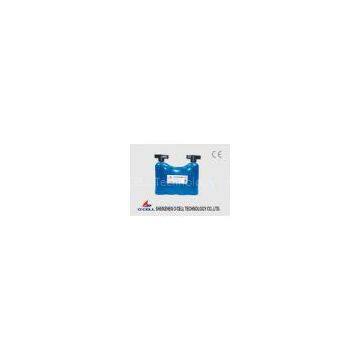

Energy-saving Blue PVC Lithium LifePO4 Starter Battery 12V 2.3Ah For Motorbike
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
O\'CELL
Place of Origin:
China
Model Number:
IFM12-23E4
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Custom Bicycle / E-Bike LiFePO4 Lithium Battery Pack 36V 10ah High Temperature ResistantNegotiableMOQ: 1 Piece -
Custom Made 12V 20Ah Lifepo4 Lithium-ion Battery Pack For Electric Car, Golf CartNegotiableMOQ: 1 Set
-
IP56 18V 70Ah LiFePO4 Lithium Battery Module, BMS Solution Custom MadeNegotiableMOQ: 1 Piece
-
72V 110AH Light Electric Vehicle LiFePO4 Battery Pack For EVNegotiableMOQ: 1 Set
-
Iron Phosphate LifePO4 Lithium BatteryNegotiableMOQ: 1 Piece
Brand Name
O\'CELL
Place of Origin
China
Model Number
IFM12-23E4
Delivery Time:25DAYS
Certification:UN38.3; CE; UL
Certification:UN38.3; CE; UL
Energy-saving Blue PVC Lithium LifePO4 Starter Battery 12V 2.3Ah For Motorbike
1.12V 2.3Ah start battery
2.motorbike start battery
3.12V 2.3Ah motorcycle start battery
4.one year warranty
12V 2.3Ah battery motorcycle start battery
Specifications:
Nominal Voltage : 12.8V
Normal Capacity : 2.3Ah
Max Discharge Current : 120A (3 seconds)
Maximun Charge Current : 5A
Discharge cut-off Volatge:8V
Charging cut-off Volatge:15.6V
Operation Temperature Range : -10~~50
Weight : 0.48KG
Advantage of lifpo4 battery:
1:long cyclelife
2:low weight small size
3:fast charge/discharge with large current
4:high temperature resistant
5 :large capacity
6 :no memory effect
7 :enviroment-friendly
| Model | IFM1223P4 | IFM1223P2 | IFM1246P2 | IFM1269P2 | IFM1292P2 | IFM12330P3 |
| Norminal Voltage(V) | 12.8V | |||||
| Norminal Capacity(@0.5C5A) | 2.3Ah | 4.6Ah | 6.9Ah | 9.2Ah | 30Ah | |
| Charge Voltage(V) | 14.6V | |||||
| Standard Charge Current(A) | 1.2A | 2.3A | 3.5A | 4.6A | 16.5A | |
| Max. Discharge Current(A) | 40A | 78A | 78A | 78A | 66A | |
| Pulse Discharge Current(A) | 120A(3S) | 240A(3S) | 345A(3S) | 460A(3S) | 540A(5S) | |
| Recommended Vehicle | 250cc or less | 250cc~500cc | 500cc~1000cc | 1000cc or above | 1500cc or above | |
| Battery Structure | Cell: IFR26650PC-2.3Ah | IFR18650PC-1.1Ah | ||||
| 4S1P | 4S2P | 4S3P | 4S4P | 4S30P | ||
| Housing Material | Blue PVC |
12V7Ah Case ABS |
12V7Ah Case ABS |
12V7Ah Case ABS |
12V9Ah Case ABS |
ABS+PC |
| Approx. Weight(g) | 380g | 580g | 910g | 990g | 1320g | 4620g |
| Dimensions(mm) | 79*28*103 | 151*87*94 | 151*87*94 | 151*87*94 | 135*75*139 | 195*130*182 |
| Max. Resistance (AC 1KHz) | ≤80mΩ | ≤40mΩ | ≤20mΩ | ≤10mΩ | ≤6mΩ | |
|
Charge Method (CC/CV) |
Standard | 1.2A×3H | 2.3A×3.0H | 4.6A×3.0H | 6.9A×3.0H | 33A×3.0H |
| Rapid | 2.3A×1.5H | 4.6A×1.5H | 6.9A×1.5H | 9.2A×1.5H | 66A×1.5H | |
| Temperature | Charge | 0℃～45℃；32℉～113℉ | ||||
| Discharge | -10℃～60℃；-4℉～149℉ | |||||
| Storage | -20℃～45℃；-4℉～113℉ |
