Computer Cold Runner Mold Single Cavity And PUNCH / Meusburger Standard
Quick Detail:

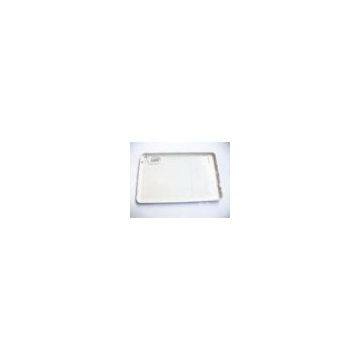

1. The part name: Computer Accessories(plastic injection mold)
2. Plastic material: ABS+PC
3. Cavity material: H13 HRC48-52
4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.
5. Gate type: Point-gate to sub gate, direct gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires.
6. Mold base standard: LKM Local standard, DME or HASCO, Customize according to customers\' requirements.
7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.
Description:
The part name: Computer Accessories
Mold type: Plastic Injection Mould with cold runner system
Ejection type: ejection pins.
Part Material: ABS+PC
KO Pattern: 200*200
Locating ring Dimension: Ф100
Sprue Radius: SR 19
Mold construction description: cold runner system with point gate to sub gate, 2 plates, lifters, inserts and shut off area.
This part has very high appearance and size requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport, Sliver Marks, Gas Trap Effect, Visible Ejector Marks,Deformation,Short shot Filling, Burnt Streaks, Sink Marks,Flash,Over dimension, Under dimension, Stress Crack etc. Moreover, the product finishing surface must meet the requires of texture MT11011.
This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.
Applications:
Molding the plastic product by plastic injection machine
Specifications:
|
|
Computer Accessories(plastic injection mold) |
|
Plastic material |
ABS+PC,PP,PE,PA,PC,ABS,POM,PVC,PMMA,PS,PPO,ASA,TPU,TPR,EVA,PP+GF, PC+GF,POM+GF,PA+GF,PPT,PET,PETG,SEBS etc. |
|
3.mould base material |
S50C,P20,S136 etc |
|
4.cavity material |
H13 HRC48-52,S136,420, P20, D2, 1040, 0-1, S-7, A2, 1.2344, 1.2083, 1.2311, 1.2739, 1.2343, 1.2510, 1.2767,NAK80,SKD61,718,738,DF-2 etc |
|
5.mold life |
1000k shots or according to customers quantity condition to decide it with saving cost for our customers. |
|
6.cavity number |
1 |
|
7.runner |
Cold runner |
|
8.gate type |
Point-gate to sub gate, direct gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires. |
|
9.mould weight |
280 kg |
|
10. mould base standard |
LKM Local standard, DME,HASCO,Customize according to customers\' requirements |
|
11.cycle time |
27 second |
|
12. standard of mold accessories |
LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires. |
|
software |
Auto CAD ,UG, Pro-E ,Solid Works,Moldflow,etc. |
|
14. File Formats |
Auto CAD (DWG), DXF, JPG or JEPG, PDF, Pro-E or Pro/Engineer(DRW,PRT), IGES, ST |
