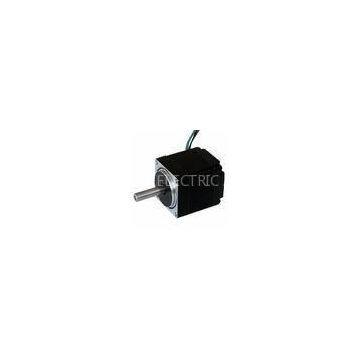

Two phase hybrid stepping motor 6 wire , NEMA 11 28BYGH 1.8
- T/T L/C D/P D/A
- 7 days
You May Like
-
1.8Degree Hybrid Stepper Motors 2 phase 39mm NEMA16 39BYGH
-
2 Phase Hybrid Stepper Motors NEMA 16 with 6 wire 1.8 degree for Industrial
-
0.9 Hybrid flat stepper motor High Torque NEMA 14 , 36mm 4 lead for printer
-
Bipolar / unipolar Hybrid Stepper Motors 42mm 0.9 , NEMA 17 for robot 42BYGH
-
24V Hybrid Stepper Motors 2 phase 4 lead with 2.8N.m high torque
-
Round Hybrid NEMA 23 Stepper Motor two phase 1.8 with High speed
Product Details
| Brand Name | JK | Place of Origin | China | |
| Model Number | JK28HS,28BYG |
Product Description
Certification:CE,ROHS ,ISO9001
1.8 Degree 2phase hybrid stepper motor , 28mm NEMA11 28BYGH
Nema 11 Hybrid Stepper Motor Model Number: JK28HS,28BYG Phase: 2 Phase Lead Wire (No.): 4 or 6 wire Structure: Hybrid Step Angle: 1.8° Holding Torque:430 - 1200 g.cm Motor Height: 28 mm Function: Control Speed: Low / High speed Shape: Square Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.1.8°28mm 2phase hybrid stepper motor NEMA11/ NEMA11 28mm stepping motor/ 28mm size stepper motor for medical equipment/ monitoring equipment stepper motor
Description:
1.8 degree Size 28mm High Torque Hybrid stepper motor.
28mm size stepper motor ,
NEMA11 stepping motor,
Small stepping motors,
2 phase 28mm stepper motor
Stepper motor 28mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor,electronic automatic equipment stepping motor ,medical instrument stepping motor, advertisement instrument stepper motor,lighting&audio equipment stepper motor ,printer stepper motor,textile machinery stepper motor.
Cnc router stepper motor.
Specifications:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Rotor Inertia |
Motor Weight |
|
( °) |
(L)mm |
A |
Ω |
mH |
g.cm |
No. |
g.cm² |
Kg |
|
|
JK28HS32-0956 |
1.8 |
32 |
0.95 |
2.8 |
0.8 |
430 |
6 |
9 |
0.11 |
|
JK28HS32-0674 |
1.8 |
32 |
0.67 |
5.6 |
3.4 |
600 |
4 |
9 |
0.11 |
|
JK28HS45-0956 |
1.8 |
45 |
0.95 |
3.4 |
1.2 |
750 |
6 |
12 |
0.14 |
|
JK28HS45-0674 |
1.8 |
45 |
0.67 |
6.8 |
4.9 |
950 |
4 |
12 |
0.14 |
|
JK28HS51-0956 |
1.8 |
51 |
0.95 |
4.6 |
1.8 |
900 |
6 |
18 |
0.2 |
|
JK28HS5 |
