Certification:CE,FCC, ROHS

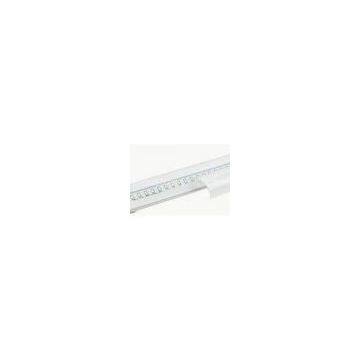

14 W - 16W 1200mm SMD2835 Aluminum 75Ra T5 4 foot LED Tube 1500Lm
Quick Detail:
1. Imported high brightness SMD2835 chip.
2. High quality precious aero aluminum.
3. Strong transparent mask face.
4. Intelligent IC driving power supply.
5. Good flame resistance.
6. High strength ultra thick packaging and 3years warranty.
7. CE/ROHS certificated
Specifications:
|
Parameters |
Model |
T5IP01401 |
|
Optical parameters |
LED Source |
SMD2835,120PCS |
|
Lumen(LM) |
1300-1600LM |
|
|
Power Supply |
Isolated |
|
|
CCT(K) |
2700-7000K |
|
|
Ra |
≧75 |
|
|
Beam Angel |
180° IP50 |
|
|
Service Life |
≧50000 H |
|
|
Electrical parameters |
Input Voltage(V) |
AC85-265v |
|
Frequency(Hz) |
50/60Hz |
|
|
LED Power |
14-16W |
|
|
Power Factor(PF) |
>0.95 |
|
|
Material & Technology |
PC cover, Aluminum plate |
|
|
Structural parameters |
Size(MM) |
1200mm |
|
Lamp Holder Type |
G13 |
|
|
Net Weight |
470g |
Description:
1, In strict accordance with international safety standards (such as UL TUV CE FCC) design, products passed CE, ROHS FCC certification
2, Fashion and noble appearance, size is more extensively applied than the traditional size
3, Isolation type LED constant current power supply adopts advanced design concept, have the chip operation, short circuit protection, lightning protection and the late problem feedback function
4, LED tube uses the soft start protection device to avoid the impact of instantaneous electric current to the LED, effectively protected the LED and prolonged the service life of the product
5, The light source adopts the low light failure and high brightness 2835bead imported from Taiwan, reduce the droop from 20% / 1000 hours to 5% / 1000 hours below (low current, fever negligible, thus greatly prolongs the service life of the LED lights).
Applications:
Commercial, Engineering, Indoor, Professional, Sailing, etc
Competitive Advantage:
1. The tubes adopt the imported 2835 chip. The light is bright and uniformed distributed, and has no dark areas.
2. Imported PC material, high light-transmission. Light utilization rate reached to 95%. Soft illumination, not dazzling, no flash frequency. Protect your eyes.
3. Enough voltage, higher brightness, small light failure, good heat dispassion, stable light, long life service.
4. High heat dissipation aluminum plate can disperse the chip heat well, more environment friendly.
5. Power conversion rate reaches to 98%, can clearly control the stability of the voltage, protect the SMD and its life.
6. High-end streamed holder with electroplating copper art, good transitivity, oxidation proof and long service life.
7. Solid material, saturated burnish.
8. High color rendering index, makes the color more real, more bright.
