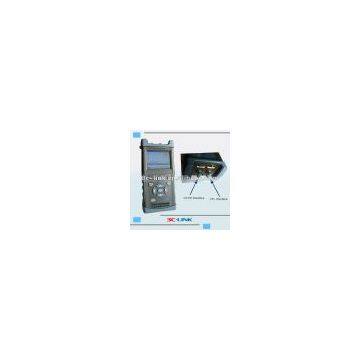

AV6416 palm OTDR

Palm OTDR
1.One touch measurement
2.Shortcut key design ,Firm and durable
3.High performance
4.Automatic measurement

AV6416  Palm OTDR

  Key Features

   *   Handheld,lightweight and convenience for carrying

   *   The most advanced technology of double-color & material integrative mould in trade

   *   Advanced anti-reflective TFT LCD,visible clearly in field

   *   1.6m extra-short event dead zone

   *   Communication light check automatically

   *   0.25m high resolution,65534 sampling points

   *   Fast auto measurement,one-button operating

   *   Double USB interfaces, supporting USB stick and direct cable download to PC via ActiveSync

   *   Supporting Bellcore GR196 file format in writing or reading

   *   Function of intelligent indicating of remaining capacity of battery and warning if the voltage of battery is low.

   *  WinCE operation system, double operating interface of Chinese and English

   *  Built-in lithium battery with high capacity for over 10 hours of operating life

   *  Visible fault locating (VFL)

   *  Universal FC/PC,FC/SC,FC/ST connector type, it´s convenient for surface cleaning

   *  Unique function of updating system on-line, returning to factory is unnecessary

Product Summaries:

    3C-OTDR-AV6416 palm OTDR is the newest instrument designed for testing FTTx network. It´s mainly used to measure the physical characteristics of optical fiber under test, such as the length,the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It´s widely applied in the manufacture, construction and maintenance in optical fiber communication system.

   3C-OTDR-AV6416  palm OTDR has the most advanced technology of double-color & material integrative mould, which is novel and beautiful in appearance.3C-OTDR-AV6416  offers three wavelengths and VLF in one handheld unit, especially for testing passive optical network (PON) in FTTx. In addition, it´s equipped with comfortable gallus for carrying conveniently.

 Extra-short event dead zone

     3C-OTDR-AV6416palm OTDR has extra-short event dead zone, which is suitable for testing short optical fiber and pigtail optical fiber.

 High-speed auto measurement

      The function of auto measurement of 3C-OTDR-AV6416 palm OTDR makes it unnecessary to operator to know about the further details of operating. Simply connect the fiber, press [Start],then the result is displayed in a few seconds, you can view the trace and event table.

 High-speed auto analyzation

       3C-OTDR-AV6416 can search and locate the events and faults in trace rapidly and precisely, and then lists all events in even table, so it´s very useful to maintainers to improving efficiency and it´s unnecessary to know about the relative background knowledge.

 Powerful file management

       3C-OTDR-AV6416 offers powerful function of file management. Besides saving,browsing or deleting files to or from USB stick and built-in memory, it can be connected to laser or inkjet printer based on PCL language, and the testing report can be printed rapidly and easily. In addition, 3C-OTDR-AV6416 can communicate with PC using ActiveSync via USB cable, through which the files can be translated rapidly.

Specifications

Note1:pulse width 10240ns, average times≥300,SNR=1,23°C±2°C;

Note2:dead zone mode, distance range : ≤ 4km, pulse width:10 ns, terminal reflection loss:≥40 dB, typical;

Note3:low brightness, exclude measuring
