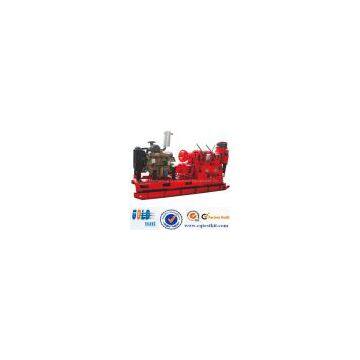

RPS-3000 Drilling Machine For Terrestrial Heat Water Well

APPLICATIONS

RPS3000 Drilling machine for terrestrial heat water is a mechanical driven and start-controlled turntable-drilling machine,It is mainly used to exploit terrestrial heat and underground water,along  with to explore and investigate the superficial  natural gas,It has following features:great propelling capability;large capacity`s repertory indes;double engine combined with rational match-up ; convenient operation and reliable safety.

MAIN SPECIFICATIONS

1 Drill depth(m) 2500-3500

2 Applicable drill stem(mm) φ89  φ127

3 Drive Power Type: Y315-4 motor 2sets

4 Power: 110kw×2

5 Rotate speed: 1480r/min

6 Turntable Type: ZP-175

7 Rating net load: 272t

8 Max.rotate speed: 350r/min

9 Open diameter: 445mm

10 Transmission ratio: 3.75:1

11 Rotate speed of turntable: clockwise and anticlockwise 33   58   75   131 r/min

12 Rating Max.torque of turntable: 40kN.m

13 Hoist capability of single  sling on hoist drum (second floor): 100, 57, 44, 25kN

14 Rotate speed of cathead-like wheel:  90, 158, 203, 356r/min

15 Height of drill tower: 31m

16 load of crane: 130t

17 Weight of whole unit: 18t
