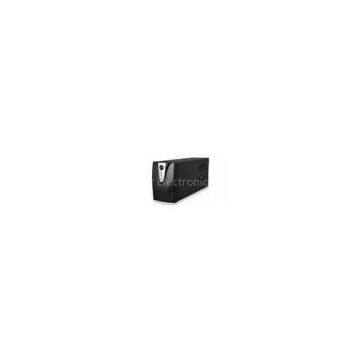

Square Wave Offline UPS Low Battery Alarm 10 Hours

Delivery Time:2 weeks
Certification:ISO 9001,CE

Square Wave Offline UPS Low Battery Alarm 10 hours

Quick Detail:

Rate Capacity:500VA-1000VA Power factor:0.6 Input:145-280Vac50/60Hz±5% Output:220/230Vac 50/60Hz Waveform:square wave(battery mode) Battery recharge time:10 hours

Specifications:

MODEL	LC500	LC600	LC1000
Rated capacity	500VA	600VA	1000A
Input	Range of voltage	145 - 280Vac
Frequency	50/60Hz ± 5%
Power factor	Conformity EN6055 - 2(>=0.95)
Output	Voltage	220/230Vac
Frequency	50/60Hz
Voltage adjustment(AVR)	Yes
Transfer time	<10ms
Protection	Peak time	40i/ms
Input protection	Fuse
Short circuit	Utility power	Fuse
Inversion	Auto protection
Battery	Model	Sealed lead acid maintenance-free battery
Capacity	1x12V/6.5Ah	1x12V/7Ah	2x12V/7Ah
Recharging time	10 Hour
Protection	Auto protection,auto charging,shut down when the battery voltage is low
Standby time(one set of pc)	8-13(minutes)	10-15(minutes)	15-30(minutes)
Waming	Buzzer	Battery powered	Buzz once very 4 seconds
Low battery voltage	Buzz once every second
Overload	Auto shutdown
Indicator	Auto adjustment	Green light on: AC normal
Battery changing	Red light on: battery mode
Working environment	Operating temperature(oC)	-5oC - 40oC
Relative temperature(%)	0-90%
Noise(dB)	<35dB(Distance is one meter)
SIZE(WxDxH)mm	340 x 90 x 140	340 x 100 x 155	345 x 122 x 190
Weight(kg)	5.3	5.6	10.5
Communication	Optional	Optional	Optional

Offline UPS 500VA, 600VA, 1000VA AVR Overload and short circuit protection Low battery alarm UPS Auto on when AC back Night charging (optional)
