IP68 Dynamic Industrial Membrane Keyboard With Integrated Touchpad

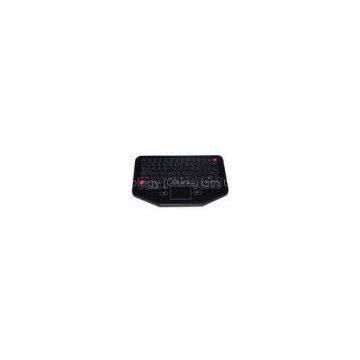

IP68 Dynamic Industrial Membrane Keyboard With Integrated Touchpad photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
IKB-MKB
Place of Origin:
China
Model Number:
K-TEK-D275TP-FN-DT
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name IKB-MKB
Place of Origin China
Model Number K-TEK-D275TP-FN-DT
Delivery Time:ASAP Within 2 weeks upon payment confirmed
Certification:CE,FCC,ROHS,IP65,IP68,ESD

Quick Details:
1. IP68 dynamic scratch proof industrial membrane keyboard with integrated with function keys
  and touchpad
2. Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC
3. Mountable desktop version
Descriptions:
1. 88 keys IP65 dynamic rated compact format industrial membrane keyboard with integrated function keys on
  the upper line
2. IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position
3. 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short
  stroke 0.45mm with extremely tactile feeling for reliable data input
4. With Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard
   from PC
5. Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most
  chemicals and liquids under the harshest environments,
6. Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment
7. mountable desk top version with robust polycarbonate case
Special Features:
1. Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
2. The foil-covered aluminum front plate is mounted flush for easy cleaning.
3. The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust,
  dirt,grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water,
  disinfectants, environmental contaminants and heavy industrial use.
4. PS/2, USB connection cables that plug directly into computer like keyboard operations.
5. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
6. This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
7. Clean key -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with
minimal downtime
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
Its numeric pad allows for easy data entry.
A: INDUSTRIAL: Industrial automation, Banks/Kiosks, pharmaceutical, oil and gas, food and beverage, clean or dirty
manufacturing environments, warehouses.
B: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc
C: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
D: MILITARY: Army, Navy, Air force, Marine and Boating etc.
E: OTHERS
Specifications:

MECHANICAL DATA

Key

88

Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

Actuation Force:

1.0N for key 13.0mm x 13.0mm (press point)

Key travel

0.45mm

Key switch Lifetime

3 mil. operations

Protection Level

IP65, NEMA 4x

Mounting Type

stand alone mounting desk top

Operating Temperature

-20 °C to +50 °C

Colors

4 (Blue, White, Grey, Black)

G.W.

1.50KGs

Key Dimensions
(print area)

13.0mm x 13.0mm

Dimensions

304.40mm x 195.8mm x 47.3(22.3) mm (top panel)

Touchpad

Touchpad cover

Composite

Method

capacitive

Motion Detection

Resolution

40 counts / mm

Key travel

0.45mm

More than Lifetime 3 million strokes

Mutual Capacitance sensing

X/Y position
sensing resolution

40 counts/mm

X/Y position reporting

Relative

   Output
(self-detectable depending on cable)


PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5 V DC ±0.25V

Current rating
(active mode)

17 mA
