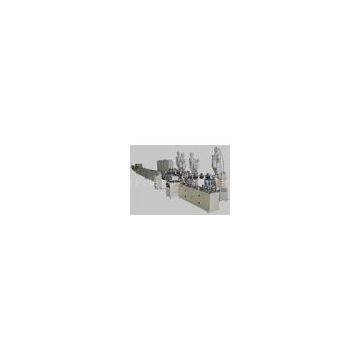

PEX / AL / PEX Plastic Pipe Extrusion Machine , 20-63mm Composite Pipe Production Line

PEX / AL / PEX Plastic Pipe Extrusion Machine , 20-63mm Composite Pipe Production Line

Quick Detail

Quick Detail of composite pipe production line PEX AL PEX composite pipe :

1. Size: 16-32mm

2. Output: 80-150kg/h

3. Length: 25-30m Plastic PE Aluminum Composite Pipe Machine

Description of composite pipe production line PEX AL PEX composite pipe  :

PLASTIC PE Aluminum Composite Pipe Machine

Plastic PE Aluminum Composite Pipe Machine processing flow:

Al plate unlocking → Al plate forming machine → Pex material→Vacuum Feeding → Single screw extruder → Single screw extruder → Co-extrusion mould → Al plate ultrasonic roll welding machine → Single screw extruder → Single screw extruder → Co-extrusion mould → Dip-in cooling tank → Dip in cooling tank → Spray code printer → Belt haul off → Double winder → Steaming for 24hours → Finished product inspecting& packing

Extrusion die head: unique co-extrusion technology, to ensure the quality stability of co-extrusion;Stable performance of the ultrasonic welding device, weld formation, good quality.
Aluminum with auxiliary equipment: aluminum belt feeder machine, ensure the high quality welding of aluminium strip and continuity of production performance of aluminium strip forming platform, to ensure good molding of the aluminium tube.
Double location winding machine: with functions of automatic error correction, automatic line, automatic unloading.

Applications of composite pipe production line PEX AL PEX composite pipe  :

Plastic PE Aluminum Composite Pipe Machine processing

Specifications of composite pipe production line PEX AL PEX composite pipe :

Plastic PE Aluminum Composite Pipe Machine Technical Parameters:

Competitive Advantage of composite pipe production line PEX AL PEX composite pipe :

1.   By adopting precision forming technique of aluminum tube, ultrasonic welded aluminum tube will have precise size and nice roundness.

2.   By adopting the process of co-extrusion in steps for inner and external tubes, binding strength between tubes is increased, heat accumulation between tubes are avoided, hence, ensure a more smooth surface of both inner and external  tubes.

3.   PLC control system is adopted by this production line, it has friendly human-computer dialogue interface, easy to operate and with interlock function. ..

This production line is used to manufacture aluminum plastic tubes and aluminum tubes. Laminated tubes will be formed in one step by ultrasonic welding and Co-extrusion process. Such aluminum and plastic laminated tubes are widely applied for cold and hot city water pipes and running pipes of acid, alkali, salt, other kinds of liquids, fuel gas, oxygen and compressed air etc.

composite pipe production line
